105
Configuring MLD snooping
Overview
MLD snooping runs on a Layer 2 switch as an IPv6 multicast constraining mechanism to improve IPv6
multicast forwarding efficiency. It creates Layer 2 IPv6 multicast forwarding entries from MLD packets that
are exchanged between the hosts and the router.
As shown in Figure 35, w
hen MLD snooping is not enabled, the Layer 2 switch floods IPv6 multicast
packets to all devices. When MLD snooping is enabled, the Layer 2 switch forwards multicast packets of
known IPv6 multicast groups to only the receivers.

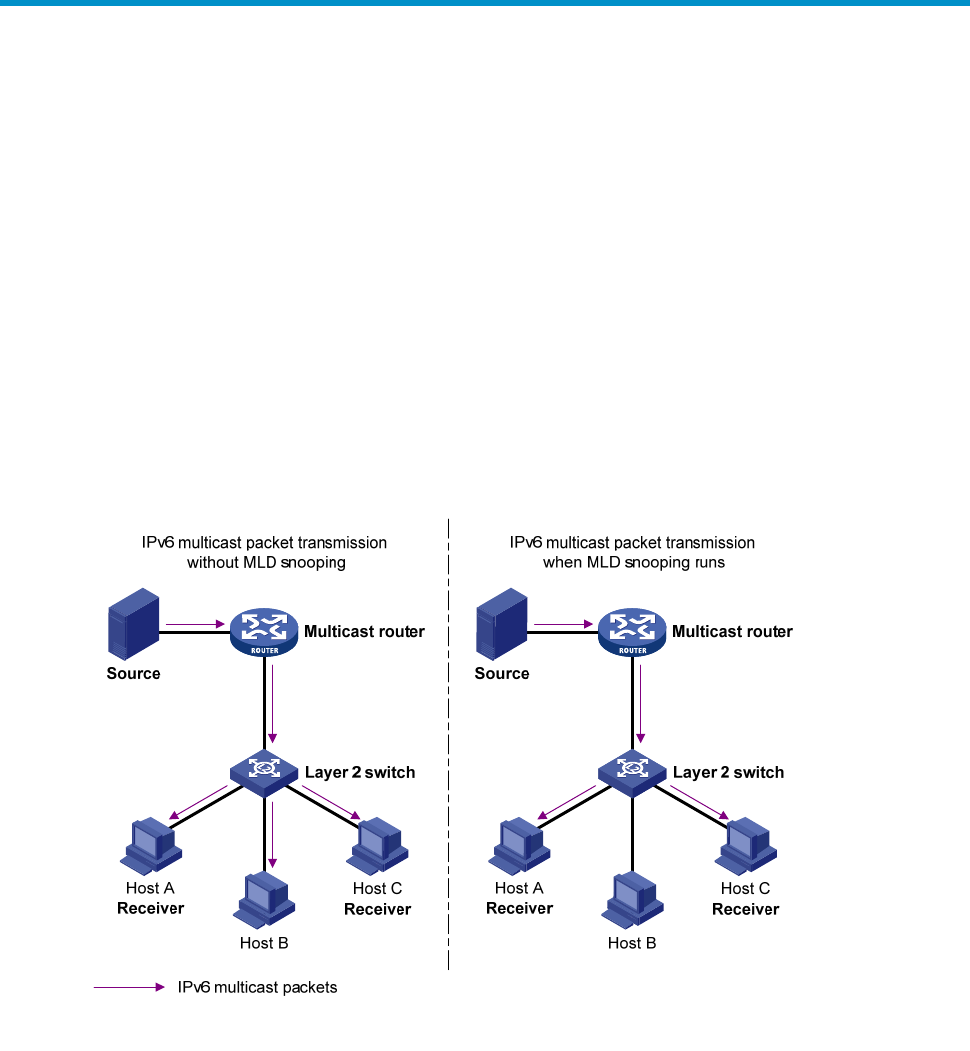

Figure 35 Multicast packet transmission processes without and with MLD snooping
Basic MLD snooping concepts
MLD snooping related ports
As shown in Figure 36, MLD snooping runs on Switch A and Switch B, and Host A and Host C are
receivers in an IPv6 multicast group.
