MLD snooping configuration examples
IPv6 group policy configuration example
Network requirements
As shown in Figure 37, Router A runs MLDv1 and serves as the MLD querier, and Switch A runs MLDv1
snooping.
To enable Host A and Host B to receive only the IPv6 multicast data addressed to the IPv6 multicast group
FF1E::101, configure MLD snooping on Switch A and enable the switch to drop unknown IPv6 multicast
data instead of flooding it in VLAN 100.

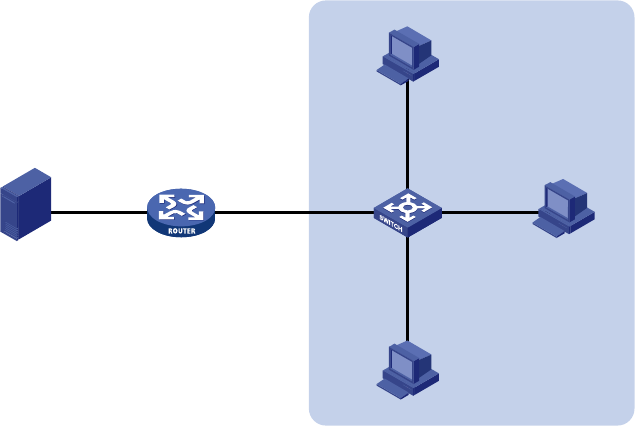

Figure 37 Network diagram
Configuration procedure
1. Assign an IPv6 address and prefix length to each interface according to Figure 37. (Details not
shown.)
2. On Router A, enable IPv6 multicast routing, enable MLD on Ten-GigabitEthernet 1/0/1, and
enable IPv6 PIM-DM on each interface.
<RouterA> system-view
[RouterA] ipv6 multicast routing-enable
[RouterA] interface ten-gigabitethernet 1/0/1
[RouterA-Ten-GigabitEthernet1/0/1] mld enable
[RouterA-Ten-GigabitEthernet1/0/1] ipv6 pim dm
[RouterA-Ten-GigabitEthernet1/0/1] quit
[RouterA] interface ten-gigabitethernet 1/0/2
[RouterA-Ten-GigabitEthernet1/0/2] ipv6 pim dm
[RouterA-Ten-GigabitEthernet1/0/2] quit
Source
Router A
MLD querier
Switch A
Receiver
Receiver
Host A
Host B
Host C
1::1/64
XGE1/0/4
XGE1/0/2
XGE1/0/3
XGE1/0/1
XGE1/0/1
2001::1/64
XGE1/0/2
1::2/64
VLAN 100
