R21xx-HP FlexFabric 11900 IP Multicast Configuration Guide

144

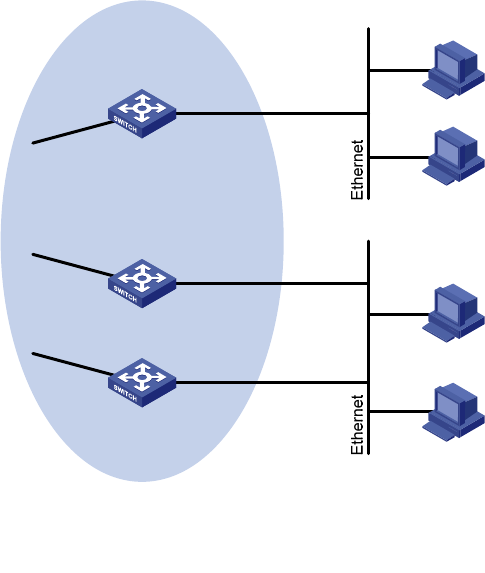

Figure 44 Network diagram
Configuration procedure
1. Assign an IP address and prefix length to each interface as shown in Figure 44. (Details not
shown.)
2. Configure OSPFv3 between the switches to make sure the network-layer is interoperable on the
IPv6 PIM network and routing information among the switches can be dynamically updated.
(Details not shown.)
3. Enable the IPv6 multicast routing, MLD, and IPv6 PIM-DM:
# On Switch A, enable IPv6 multicast routing globally, enable MLD on VLAN-interface 100, and
enable IPv6 PIM-DM on each interface.
<SwitchA> system-view
[SwitchA] ipv6 multicast routing-enable
[SwitchA] interface vlan-interface 100
[SwitchA-Vlan-interface100] mld enable
[SwitchA-Vlan-interface100] ipv6 pim dm
[SwitchA-Vlan-interface100] quit
[SwitchA] interface vlan-interface 101
[SwitchA-Vlan-interface101] ipv6 pim dm
[SwitchA-Vlan-interface101] quit
# On Switch B, enable IPv6 multicast routing globally, enable MLD on VLAN-interface 200, and
enable IPv6 PIM-DM on each interface.
<SwitchB> system-view
[SwitchB] ipv6 multicast routing-enable
[SwitchB] interface vlan-interface 200
Switch A
Switch B
Switch C
Querier
N1
N2
Receiver
Receiver
Host A
Host B
Host C
Host D
Vlan-int100
3000::12/64
Vlan-int200
3001::10/64
Vlan-int200
3001::12/64
V
l
a
n
-
i
n
t
1
0
1
V
l
a
n
-
i
n
t
2
0
1
V
l
a
n
-
i
n
t
2
0
2
IPv6 PIM network
