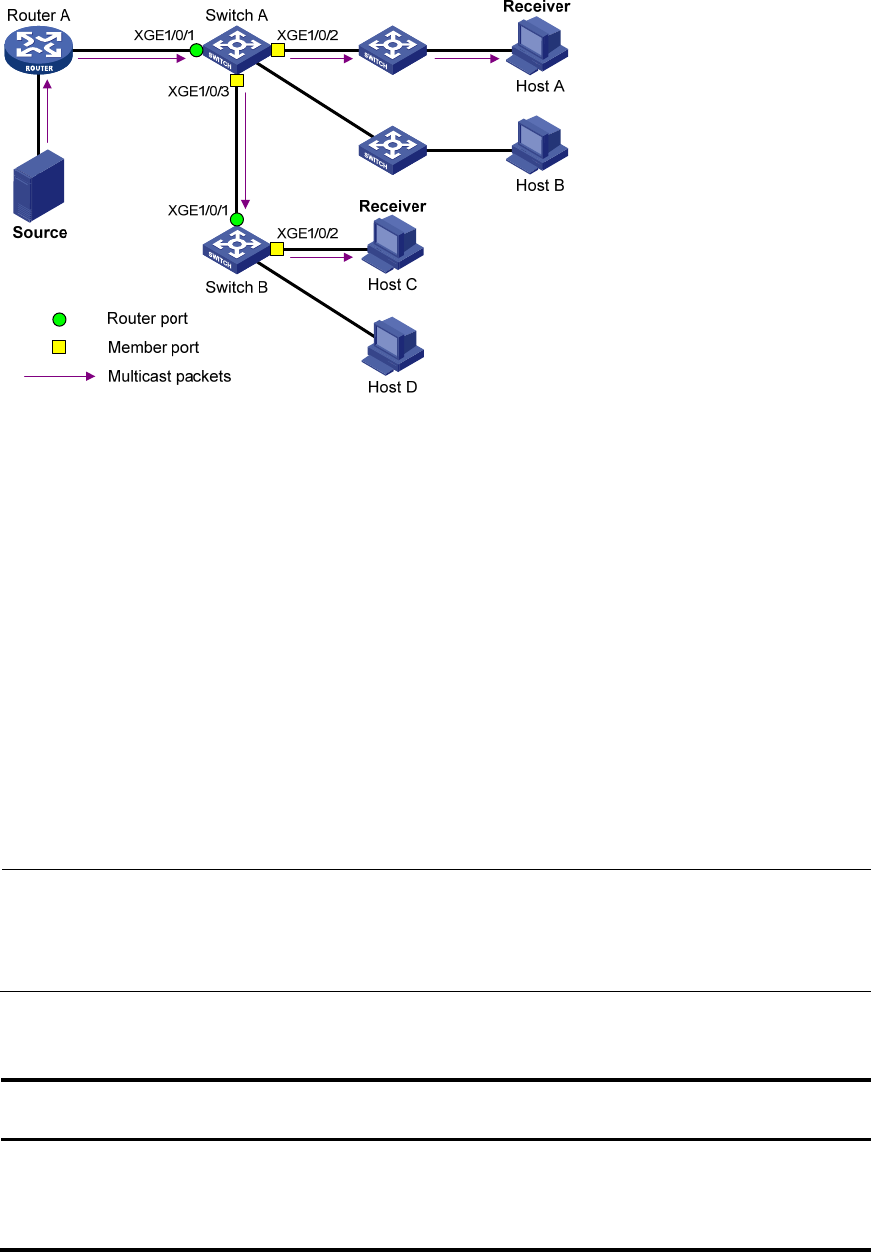

Figure 11 IGMP snooping related ports
The following describes the ports involved in IGMP snooping:
• Router port—Layer 3 multicast device-side port. Layer 3 multicast devices include designated
routers (DRs) and IGMP queriers. In Figure 11, T
en-GigabitEthernet 1/0/1 of Switch A and
Ten-GigabitEthernet 1/0/1 of Switch B are the router ports. A switch records all its router ports in
the router port list.
Do not confuse the "router port" in IGMP snooping with the "routed interface" commonly known as
the "Layer 3 interface." The router port in IGMP snooping is a Layer 2 interface.
• Member port—Multicast receiver-side port. In Figure 11, T
en-GigabitEthernet 1/0/2 and
Ten-GigabitEthernet 1/0/3 of Switch A and Ten-GigabitEthernet 1/0/2 of Switch B are the
member ports. A switch records all its member ports in the IGMP snooping forwarding table.
Unless otherwise specified, router ports and member ports in this document include both static and
dynamic router ports and member ports.
NOTE:
W
hen IGMP snooping is enabled, all ports that receive PIM hello messages or IGMP
g
eneral queries with
the source addresses other than 0.0.0.0 are considered dynamic router ports. For more information abou
t
PIM hello messages, see "Configuring PIM."
Aging timers for dynamic ports in IGMP snooping
Timer Description
Message received before
the timer ex
p
ires
Action after the timer
ex
p
ires
Dynamic
router port
aging timer.
For each dynamic router port, the
switch sets an aging timer. When
the timer expires, the dynamic
router port ages out.
IGMP general query with the
source address other than
0.0.0.0 or PIM hello
message.
The switch removes the
port from its router port
list.
