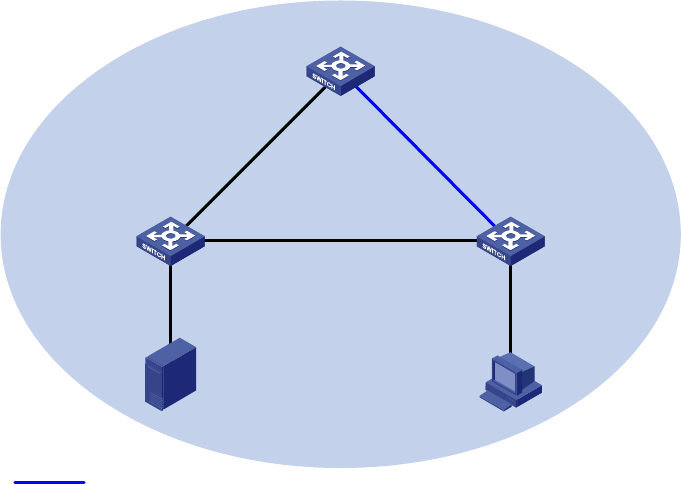

Figure 18 Network diagram
Configuration procedure
1. Configure the IP address and subnet mask for each interface as shown in Figure 18. (Details not
shown.)
2. Enable OSPF on the switches in the PIM-DM domain to make sure the network-layer on the PIM-DM
network is interoperable and the routing information among the switches can be dynamically
updated. (Details not shown.)
3. Enable IP multicast routing, and enable IGMP and PIM-DM:
# On Switch B, enable IP multicast routing globally, enable IGMP on VLAN-interface 100, and
enable PIM-DM on each interface.
<SwitchB> system-view
[SwitchB] multicast routing-enable
[SwitchB] interface vlan-interface 100
[SwitchB-Vlan-interface100] igmp enable
[SwitchB-Vlan-interface100] pim dm
[SwitchB-Vlan-interface100] quit
[SwitchB] interface vlan-interface 101
[SwitchB-Vlan-interface101] pim dm
[SwitchB-Vlan-interface101] quit
[SwitchB] interface vlan-interface 102
[SwitchB-Vlan-interface102] pim dm
[SwitchB-Vlan-interface102] quit
# On Switch A, enable IP multicast routing globally and enable PIM-DM on each interface.
<SwitchA> system-view
[SwitchA] multicast routing-enable
Multicast static route
Switch A Switch B
Switch C
Vlan-int102
30.1.1.2/24
Vlan-int103
40.1.1.2/24
Vlan-int200
50.1.1.1/24
Vlan-int103
40.1.1.1/24
Vlan-int101
20.1.1.2/24
Vlan-int101
20.1.1.1/24
Vlan-int102
30.1.1.1/24
Vlan-int100
10.1.1.1/24
Source Receiver
50.1.1.100/24 10.1.1.100/24
PIM-DM
