45
Creating an RPF route
Network requirements
PIM-DM runs in the network and all switches in the network support IP multicast. Switch B and Switch C
run OSPF, and have no unicast routes to Switch A. Typically, the receiver host receives the multicast data
from the source 1 in the OSPF domain.
Perform the configuration so that the receiver host receives multicast data from the source 2, which is
outside the OSPF domain.

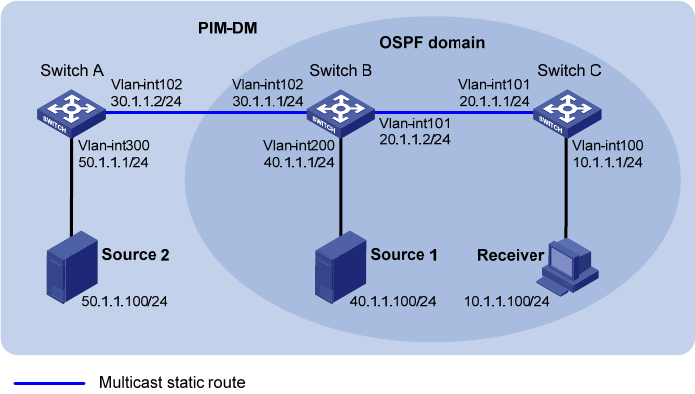

Figure 19 Network diagram
Configuration procedure
1. Configure the IP address and subnet mask for each interface as shown in Figure 19. (Details not
shown.)
2. Enable OSPF on Switch B and Switch C to make sure the network-layer on the PIM-DM network is
interoperable and the routing information among the switches can be dynamically updated.
(Details not shown.)
3. Enable IP multicast routing, and enable IGMP and PIM-DM:
# On Switch C, enable IP multicast routing globally, enable IGMP on VLAN-interface 100, and
enable PIM-DM on each interface.
<SwitchC> system-view
[SwitchC] multicast routing-enable
[SwitchC] interface vlan-interface 100
[SwitchC-Vlan-interface100] igmp enable
[SwitchC-Vlan-interface100] pim dm
[SwitchC-Vlan-interface100] quit
[SwitchC] interface vlan-interface 101
[SwitchC-Vlan-interface101] pim dm
