BLADE OS 5.1 Application Guide
158 Chapter 9: Basic IP Routing BMD00113, September 2009
Routing Between IP Subnets
The physical layout of most corporate networks has evolved over time. Classic hub/router
topologies have given way to faster switched topologies, particularly now that switches are
increasingly intelligent. The GbE2c is intelligent and fast enough to perform routing functions on a
par with wire speed Layer 2 switching.
The combination of faster routing and switching in a single device provides another service—it
allows you to build versatile topologies that account for legacy configurations.
For example, consider the following topology migration:

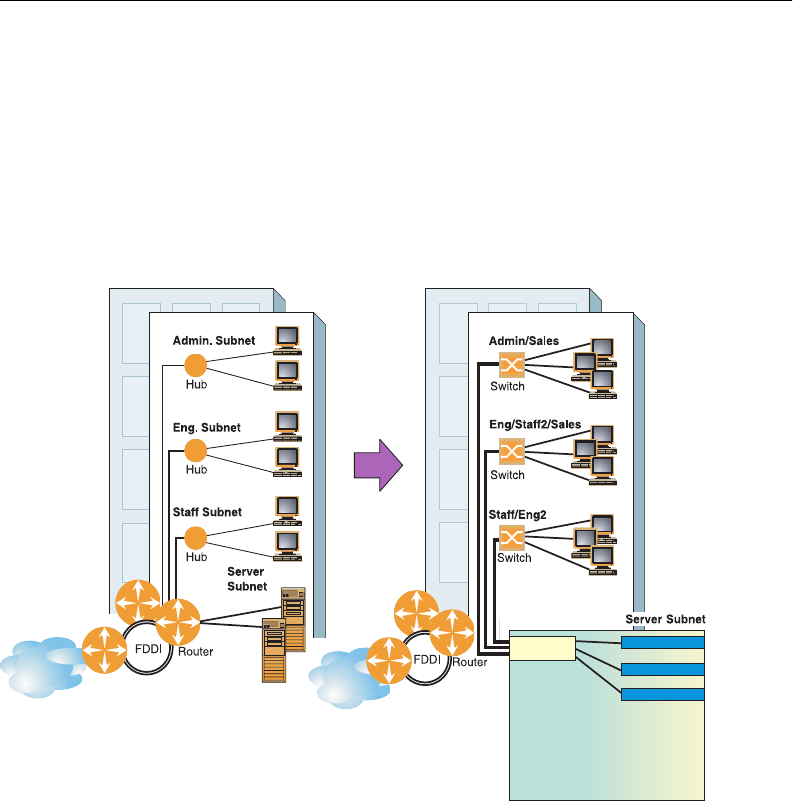

Figure 17 The Router Legacy Network
In this example, a corporate campus has migrated from a router-centric topology to a faster, more
powerful, switch-based topology. As is often the case, the legacy of network growth and redesign
has left the system with a mix of illogically distributed subnets.
This is a situation that switching alone cannot cure. Instead, the router is flooded with cross-subnet
communication. This compromises efficiency in two ways:
Routers can be slower than switches. The cross-subnet side trip from the switch to the router and
back again adds two hops for the data, slowing throughput considerably.
Traffic to the router increases, increasing congestion.
Internet
Internet
Internet
Internet
Blade Chassis
Switch
