BLADE OS 5.1 Application Guide
242 Chapter 14: High Availability BMD00113, September 2009

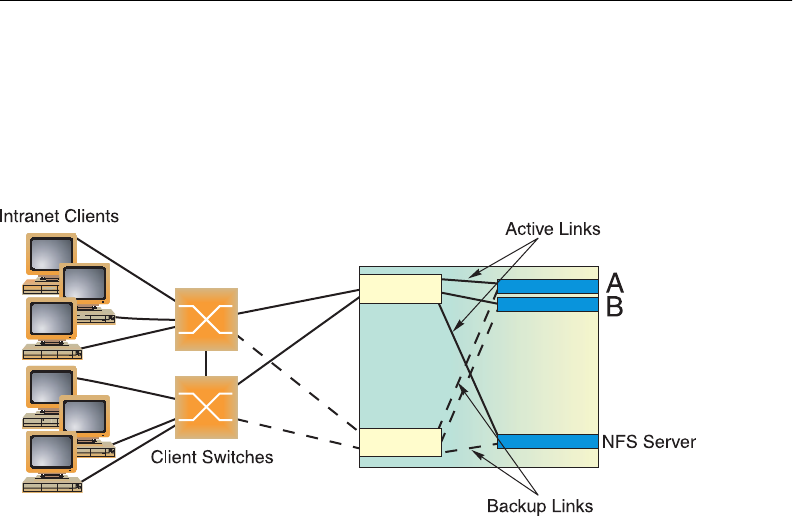

Failover Methods
With service availability becoming a major concern on the Internet, service providers are
increasingly deploying Internet traffic control devices, such as application switches, in redundant
configurations. Traditionally, these configurations have been hot-standby configurations, where
one switch is active and the other is in a standby mode. A non-VRRP hot-standby configuration is
shown in the figure below:
Figure 31 A Non-VRRP, Hot-Standby Configuration
While hot-standby configurations increase site availability by removing single points-of-failure,
service providers increasingly view them as an inefficient use of network resources because one
functional application switch sits by idly until a failure calls it into action. Service providers now
demand that vendors' equipment support redundant configurations where all devices can process
traffic when they are healthy, increasing site throughput and decreasing user response times when
no device has failed.
BLADE OS high availability configurations are based on VRRP. The BLADE OS implementation
of VRRP includes proprietary extensions.
Based on proprietary BLADE OS extensions to VRRP, BLADE OS supports Active-Active high
availability.
Primary Switch
IP: 200.200.200.100
Secondary Switch
IP: 200.200.200.101
Internet
Servers
