R3102-R3103-HP 6600/HSR6600 Routers IP Multicast Configuration Guide

89
UpTime: 00:13:25
Upstream interface: GigabitEthernet2/1/2
Upstream neighbor: 192.168.3.1
RPF prime neighbor: 192.168.3.1
Downstream interface(s) information:
Total number of downstreams: 1
1: GigabitEthernet2/1/1
Protocol: igmp, UpTime: 00:13:25, Expires: -
IGMP proxying configuration example
Network requirements
PIM-DM runs on the core network. Host A and Host C in the stub network receive VOD information sent
t o m u l t i c a s t g ro u p 224 .1.1.1.
Configure the IGMP proxying feature on Router B so that Router B can maintain group memberships and
forward multicast traffic without running PIM-DM.

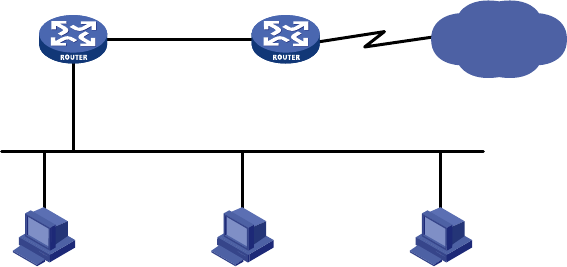

Figure 31 Network diagram
Configuration procedure
1. Assign an IP address and subnet mask to each interface according to Figure 31. (Details not
shown.)
2. Enable IP multicast routing, PIM-DM, IGMP, and IGMP proxying:
# Enable IP multicast routing on Router A, PIM-DM on Serial 3/1/1, and IGMP on GigabitEthernet
2/1/1.
<RouterA> system-view
[RouterA] multicast routing-enable
[RouterA] interface serial 3/1/1
[RouterA-Serial3/1/1] pim dm
[RouterA-Serial3/1/1] quit
[RouterA] interface gigabitethernet 2/1/1
[RouterA-GigabitEthernet2/1/1] igmp enable
[RouterA-GigabitEthernet2/1/1] pim dm
[RouterA-GigabitEthernet2/1/1] quit
Proxy & Querier
Router B
Querier
Router A
Host B
Receiver
Host A
Receiver
Host C
GE2/1/1
192.168.1.1/24
GE2/1/1
192.168.1.2/24
GE2/1/2
192.168.2.1/24
S3/1/1
10.110.1.1/24
PIM-DM
