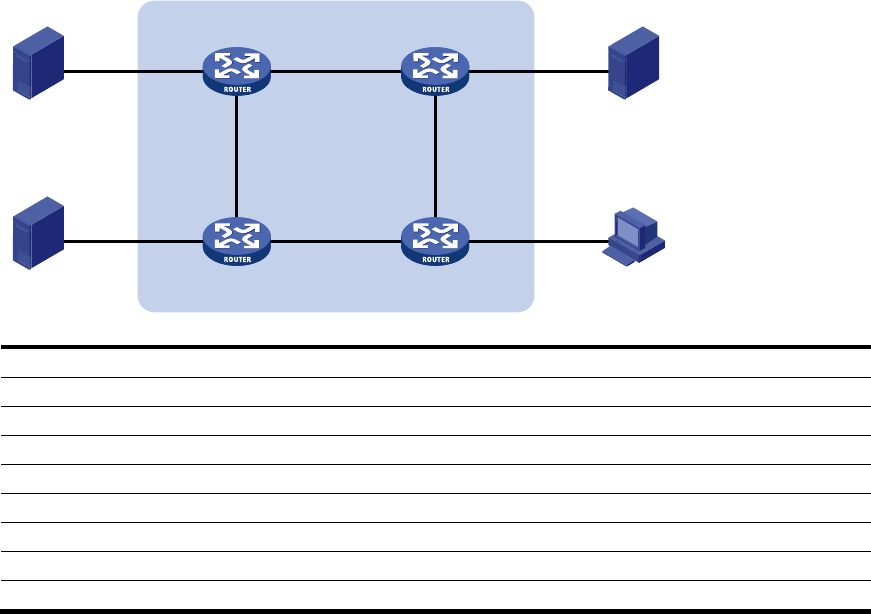

Figure 86 Network diagram
Device Interface IPv6 address Device Interface IPv6 address
Source 1 — 1001::1/64 Source 3 — 3001::1/64
Source 2 — 2001::1/64 Receiver — 4001::1/64
Router A GE2/1/1 1001::2/64 Router C GE2/1/1 3001::2/64
GE2/1/2 1002::1/64 GE2/1/2 3002::1
/
64
GE2/1/3 1003::1/64 GE2/1/3 2002::2
/
64
Router B GE2/1/1 2001::2/64 Router D GE2/1/1 4001::2/64
GE2/1/2 1002::2/64 GE2/1/2 3002::2
/
64
GE2/1/3 2002::1
/
64 GE2/1/3 1003::2/64
Configuration procedure
1. Enable IPv6 forwarding on each router and assign an IPv6 address and prefix length to each
interface according to Figure 86. (Details not shown.)
2. Conf
igure OSPFv3 on the routers to make sure they are interoperable at the network layer and
they can dynamically update their routing information. (Details not shown.)
3. Enable IPv6 multicast routing, enable IPv6 PIM-SM on each interface and enable MLD and MLD
SSM mapping on the host-side interface:
# Enable IPv6 multicast routing on Router D, enable IPv6 PIM-SM on each interface and enable
MLD (version 2) and MLD SSM mapping on GigabitEthernet 2/1/1.
<RouterD> system-view
[RouterD] multicast ipv6 routing-enable
[RouterD] interface gigabitethernet 2/1/1
[RouterD-GigabitEthernet2/1/1] mld enable
[RouterD-GigabitEthernet2/1/1] mld version 2
[RouterD-GigabitEthernet2/1/1] mld ssm-mapping enable
[RouterD-GigabitEthernet2/1/1] pim ipv6 sm
[RouterD-GigabitEthernet2/1/1] quit
[RouterD] interface gigabitethernet 2/1/2
[RouterD-GigabitEthernet2/1/2] pim ipv6 sm
[RouterD-GigabitEthernet2/1/2] quit
[RouterD] interface gigabitethernet 2/1/3
[RouterD-GigabitEthernet2/1/3] pim ipv6 sm
[RouterD-GigabitEthernet2/1/3] quit
IPv6 PIM-SM
Router A
Router B Router C
Router D
Receiver
Source 2
Source 1
Source 3
GE2/1/1
GE2/1/2
GE2/1/3
GE2/1/1 GE2/1/3
GE2/1/2
GE2/1/1
GE2/1/1
GE2/1/3
GE2/1/3
GE2/1/2
GE2/1/2
