ranges that different admin-scope zones serve can be overlapped. A multicast group is valid only within
its local admin-scope zone, and functions as a private group address.
The global scope zone maintains a BSR, which serves the multicast groups that do not belong to any
admin-scope zone.
Relationship between admin-scope zones and the global scope zone
The global-scoped zone and each admin-scoped zone have their own C-RPs and BSRs. These devices are
effective only on their respective zones, and the BSR election and the RP election are implemented
independently. Each admin-scoped zone has its own boundary. The multicast information within a zone
cannot cross this boundary in either direction. You can have a better understanding of the global-scoped
zone and admin-scoped zones based on geographical locations and multicast group address ranges.
• In view of geographical locations
An admin-scope zone is a logical zone for particular multicast groups. The multicast packets for
such multicast groups are confined within the local admin-scope zone and cannot cross the
boundary of the zone.

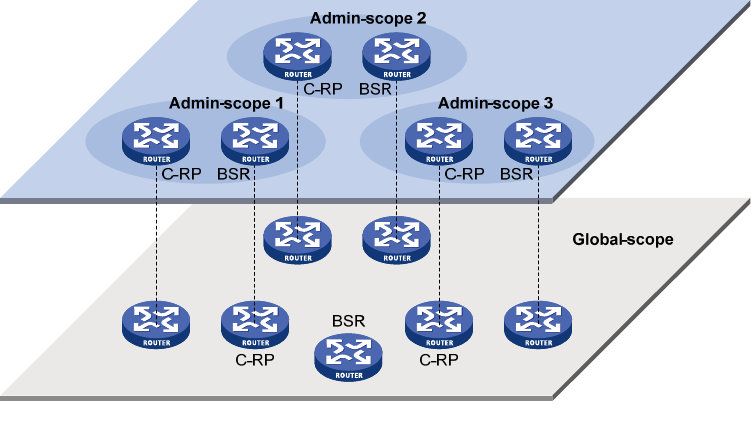

Figure 41 Relationship in view of geographical locations
As shown in Figure 41, for the multicast groups in a specific group address range, the
admin-scope zones must be geographically separated and isolated. A router cannot belong to
multiple admin-scope zones. In other words, different admin-scope zones contain different routers.
However, the global-scoped zone includes all routers in the PIM-SM domain or BIDIR-PIM domain.
Multicast packets that do not belong to any admin-scope zones are forwarded in the entire PIM-SM
domain or BIDIR-PIM domain.
• In view of multicast group address ranges
Each admin-scope zone serves specific multicast groups, of which the multicast group addresses
are valid only within the local zone. The multicast groups of different admin-scoped zones might
have intersections. All the multicast groups other than those of the admin-scoped zones are served
by the global-scoped zone.
