R3102-R3103-HP 6600/HSR6600 Routers IP Multicast Configuration Guide

214

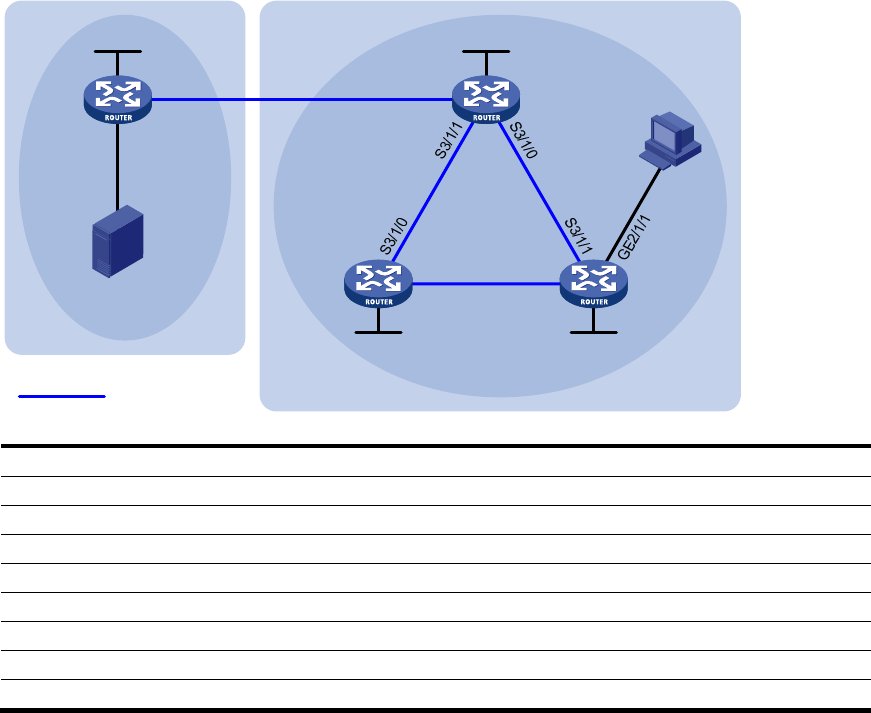

Figure 58 Network diagram
Device Interface IP address Device Interface IP address
Source - 10.110.1.100/24 Router C GE2/1/1 10.110.2.1/24
Router A GE2/1/1 10.110.1.1/24 S3/1/0 192.168.4.1/24
POS5/1/0 192.168.1.1/24 S3/1/1 192.168.2.2/24
Loop0 1.1.1.1/32 Loop0 3.3.3.3/32
Router B POS5/1/0 192.168.1.2/24 Router D S3/1/0 192.168.3.2/24
S3/1/0 192.168.2.1/24 S3/1/1 192.168.4.2/24
S3/1/1 192.168.3.1/24 Loop0 4.4.4.4/32
Loop0 2.2.2.2/32
Configuration procedure
1. Configure IP addresses for router interfaces as shown in Figure 58. (Details not shown.)
2. Configure OSPF. (Details not shown.)
3. Enable IP multicast routing, PIM-SM and IGMP, and configure a PIM-SM domain border:
# Enable IP multicast routing on Router A, and enable PIM-SM on each interface.
<RouterA> system-view
[RouterA] multicast routing-enable
[RouterA] interface gigabitethernet 2/1/1
[RouterA-GigabitEthernet2/1/1] pim sm
[RouterA-GigabitEthernet2/1/1] quit
[RouterA] interface pos 5/1/0
[RouterA-Pos5/1/0] pim sm
[RouterA-Pos5/1/0] quit
The configuration on Router B and Router D is similar to the configuration on Router A.
# Enable IP multicast routing on Router C, enable PIM-SM on each interface, and enable IGMP on
the host-side interface GigabitEthernet 2/1/1.
<RouterC> system-view
[RouterC] multicast routing-enable
MBGP peers
AS 100 AS 200
Source
Receiver
Router A
Router B
Router C
Router D
POS5/1/0 POS5/1/0
S3/1/1 S3/1/0
GE2/1/1
PIM-SM 1
PIM-SM 2
Loop0 Loop0
Loop0Loop0
