R3102-R3103-HP 6600/HSR6600 Routers IP Multicast Configuration Guide

372
prefix/prefix length: FFDE::/16
RP: 8001::1
Priority: 192
HoldTime: 130
Uptime: 00:03:39
Expires: 00:01:51
prefix/prefix length: FFEE::/16
RP: 8001::1
Priority: 192
HoldTime: 130
Uptime: 00:03:39
Expires: 00:01:51
prefix/prefix length: FFFE::/16
RP: 8001::1
Priority: 192
HoldTime: 130
Uptime: 00:03:39
Expires: 00:01:51
IPv6 BIDIR-PIM configuration example
Network requirements
In the IPv6 BIDIR-PIM domain shown in Figure 104, Source 1 and Source 2 send different IPv6 multicast
information to IPv6 multicast group FF14::101. Host A and Host B receive IPv6 multicast information from
the two sources.
Serial 3/1/1 of Router C acts as a C-BSR, and loopback interface 0 acts as a C-RP of the IPv6 BIDIR-PIM
domain.
MLDv1 runs between Router B and Host A and between Router D and Host B.

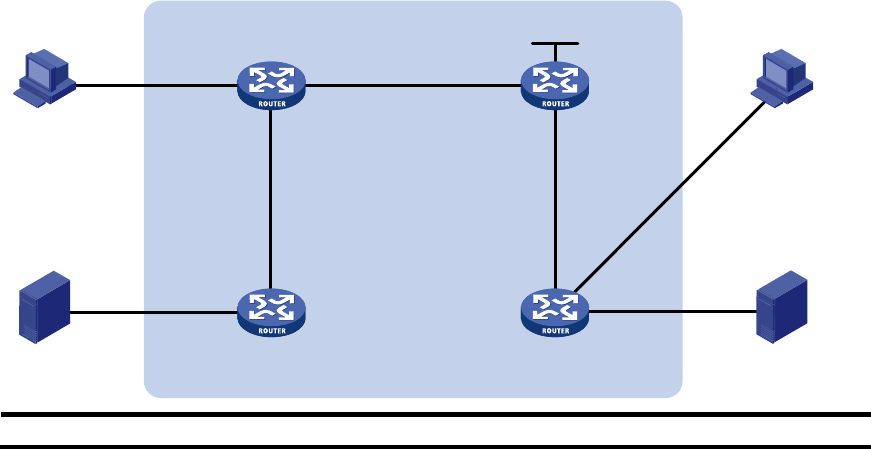

Figure 104 Network diagram
Device Interface IPv6 address Device Interface IPv6 address
IPv6 BIDIR-PIM
Source 1 Source 2
Host A
Receiver 1
Router A
S3/1/1
S3/1/1
S3/1/2 S3/1/1
S3/1/2
S3/1/1
GE2/1/1
GE2/1/1
GE2/
1/
1
GE2/1/2
Router D
Router C
Router B
Host B
Receiver 2
Loop0
