377
MLDv2 runs between Router A and N1 and between Router B, Router C, and N2.

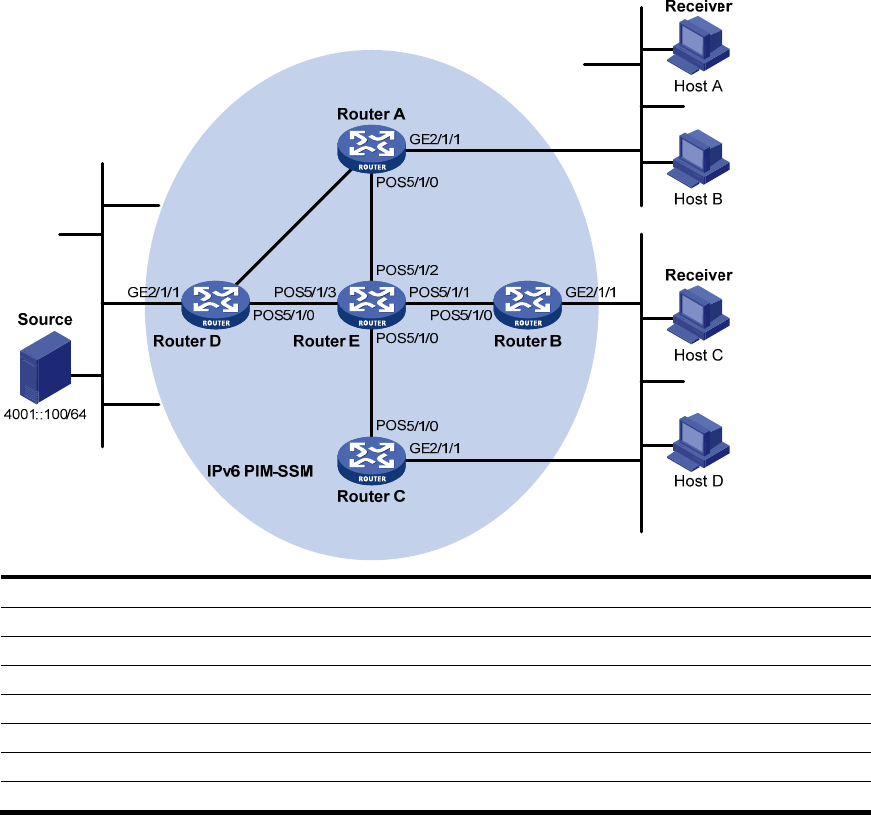

Figure 105 Network diagram
Device Interface IPv6
address
Device
Interface IPv6 address
Router A GE2/1/1 1001::1/64
Router D
GE2/1/1 4001::1/64
S3/1/0 1002::1/64 S3/1/0 1002::2/64
POS5/1/0 1003::1/64
POS5/1/0 4002::1/64
Router B GE2/1/1 2001::1/64
Router E
POS5/1/0 3001::2/64
POS5/1/0 2002::1/64 POS5/1/1 2002::2/64
Router C GE2/1/1 2001::2
/
64
POS5/1/2 1003::2/64
POS5/1/0 3001::1/64
POS5/1/3 4002::2/64
Configuration procedure
1. Enable IPv6 forwarding on each router and configure the IPv6 address and prefix length for each
interface according to Figure 105. (Details not shown.)
2. Conf
igure OSPFv3 on the routers in the IPv6 PIM-SSM domain to ensure network-layer reachability
among them. (Details not shown.)
3. Enable IPv6 multicast routing, IPv6 PIM-SM, and MLD:
# Enable IPv6 multicast routing on Router A, and enable IPv6 PIM-SM on each interface, and run
MLDv2 on GigabitEthernet 2/1/1, which connects Router A to N1.
<RouterA> system-view
[RouterA] multicast ipv6 routing-enable
[RouterA] interface gigabitethernet 2/1/1
[RouterA-GigabitEthernet2/1/1] mld enable
[RouterA-GigabitEthernet2/1/1] mld version 2
[RouterA-GigabitEthernet2/1/1] pim ipv6 sm
Ethernet
EthernetEthernet
N1N2
S3/1/0
S3/1/0
