Task Command Remarks
Remove all the dynamic group entries of
a specified IGMP snooping group or all
IGMP snooping groups.
reset igmp-snooping group { group-address |
all } [ vlan vlan-id ]
Available in
user view.
Clear statistics for the IGMP messages
learned through IGMP snooping.
reset igmp-snooping statistics
Available in
user view.
NOTE:
The reset igmp-snooping group command takes effect only in IGMP snooping-enabled VLANs but not in
V
LANs with IGMP-enabled VLAN interfaces. This command cannot remove the static group entries for
IGMP snooping groups.
IGMP snooping configuration examples
This section provides examples of configuring IGMP snooping.
Group policy and simulated joining configuration example
Network requirements
As shown in Figure 14, IGMPv2 runs on Router A, IGMPv2 snooping runs on Router B, and Router A acts
as the IGMP querier on the subnet. Router B is an 6600/HSR6600 router.
The receivers, Host A and Host B can receive multicast traffic addressed to multicast group 224.1.1.1 only.
Multicast data for group 224.1.1.1 can be forwarded through GigabitEthernet 2/0/3 and
GigabitEthernet 2/0/4 of Router B even if Host A and Host B accidentally, temporarily stop receiving
multicast data. Router B drops unknown multicast data and does not broadcast the data to the VLAN
where Router B resides.

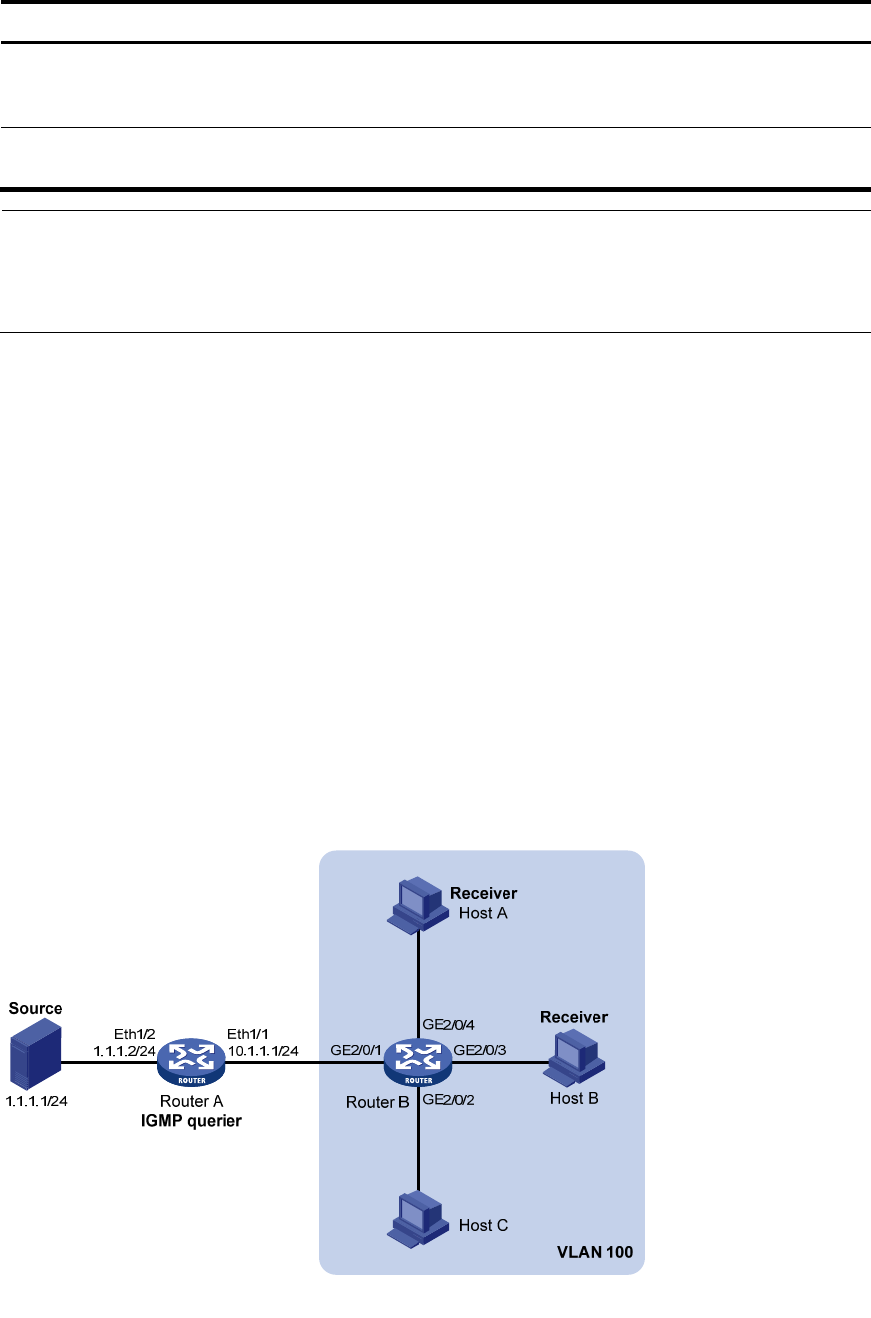

Figure 14 Network diagram
