Configuring the CTL700 Tape Library for the
NonStop NS-Series Server
L700 (CTL700) Installation and User’s Guide—527338-008
A-4
Configuring Fibre Channel Tape Drives
3. Press the Menu key on the control panel and the Main Menu will appear.
4. Scroll down to Drive Info on the Main Menu by using the down key on the control
panel as shown in Figure A-3.
5. Press the Select key on the control panel for Drive Info.
6. Select the tape drive that you need to configure by using the up or down arrows on
the control panel.
In this example we are going to select the 9840C tape drive. See Figure A-4
on
page A-5.

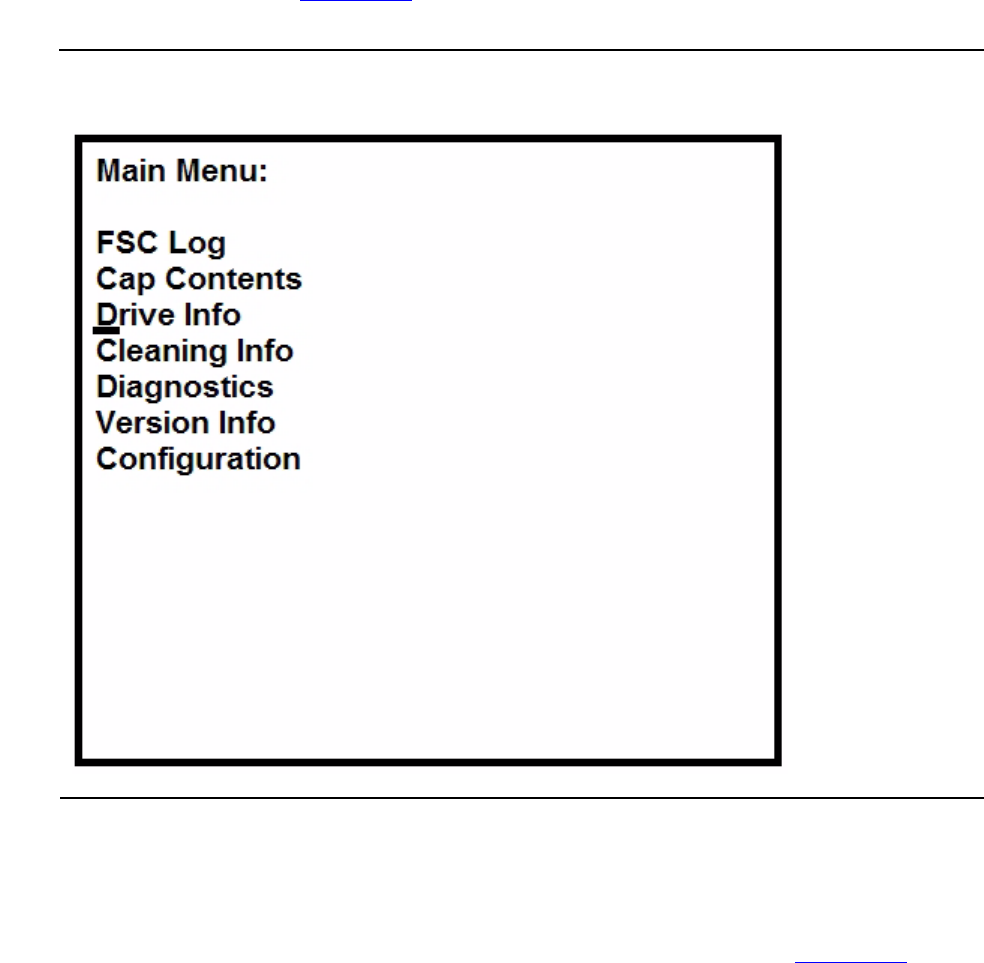

Figure A-3. Main Menu
