Unpacking the Tape Library
L700 (CTL700) Installation and User’s Guide—527338-008
2-7
Securing the Tape Library Position
Securing the Tape Library Position
1. Apply the four wheel chocks from the shipping kit to the four wheels of the
tape library.
2. Make sure the tape library does not move from its floor position.
Unpacking the Tape Library Interior
To unpack the interior portion of the tape library:

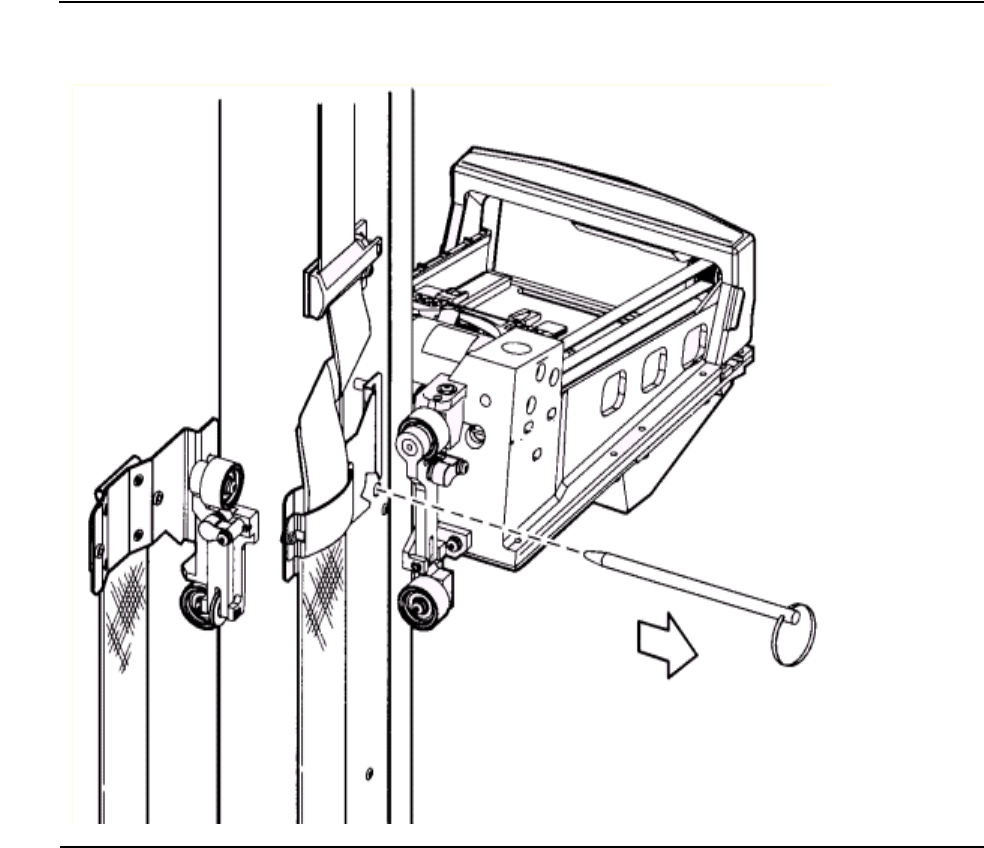

1. Locate and remove the Z column shipping pin.
Figure 2-4. Column Shipping Pin
