Installing the Expansion Frame
11. Using the adjustable wrench, adjust the legs of the expansion frame until the
pins on the expansion frame align with the holes in the tape library wall:
a. Align the bottom pin on the expansion frame first.
b. Align the top pin on the expansion frame next.
12. When aligned, push the expansion frame to mate with the alignment holes in
the tape library wall.
13. From the interior of the tape library, thread the six 1/4-20 by 1/4-inch screws
(supplied in the expansion frame kit) through the tape library wall and into
the expansion frame. Using a T-30 Torx driver, tighten the screws.
14. Replace the tape cartridge arrays and tape cartridge array lock at Panel 2,
Column 4.

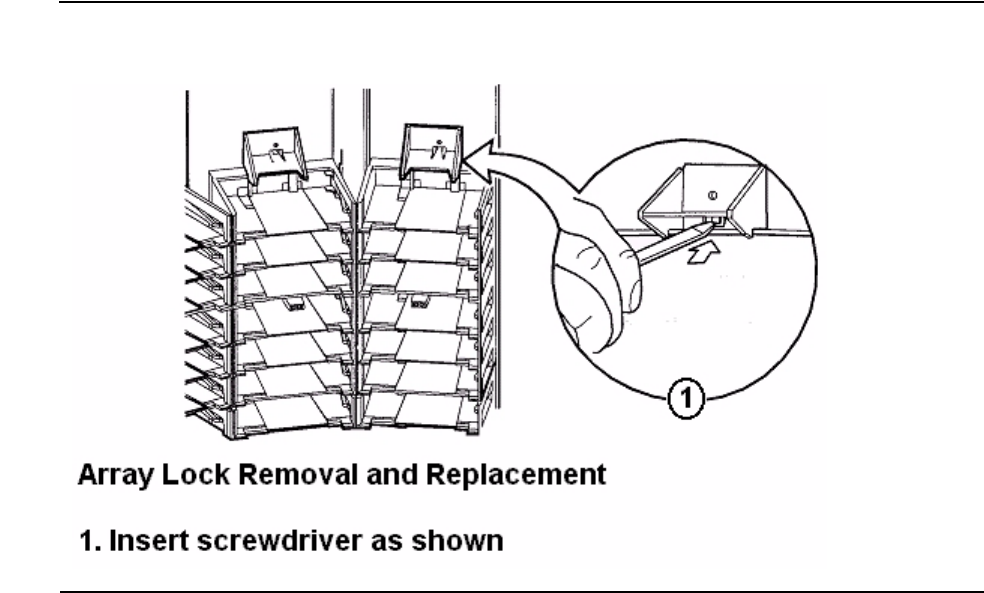

Figure 3-2. Array Lock Removal and Replacement
