Installing the Tape Library
L700 (CTL700) Installation and User’s Guide—527338-008
3-11
Connecting Power
Connecting Power
To connect the tape library power cable to its power source:
1. Check that the power cable is labeled with the tape library address or
location.
2. Connect the male end of the power cable into the wall outlet.
3. Turn the circuit breaker for the wall outlet to ON.
4. Lift the tape library circuit breaker up (ON).
5. The tape library begins its initial program loading of the embedded firmware.

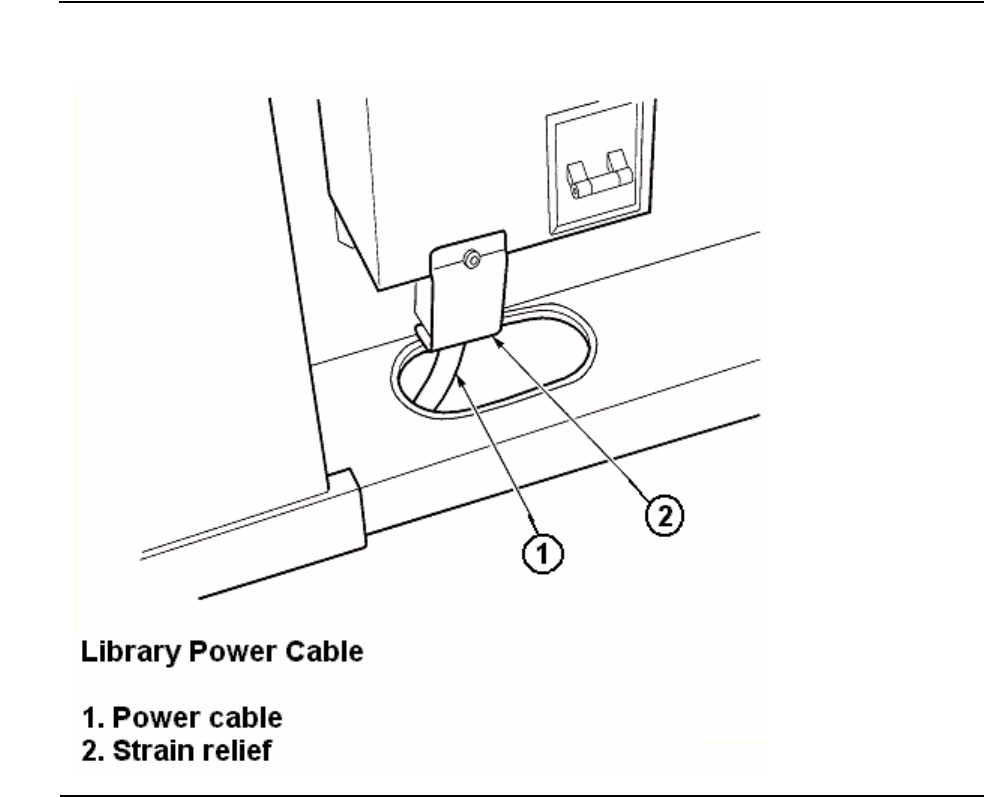

Figure 3-5. Tape Library Power Cable
