Controls and Indicators on the CTL700 Tape Library
L700 (CTL700) Installation and User’s Guide—527338-008
4-6
Display Screens
Drive Information
Accessible from the Main menu, the Drive Information menu is an information-only
screen that lists manufacturing and status information about the selected drive. (See
Figure 4-5
.)

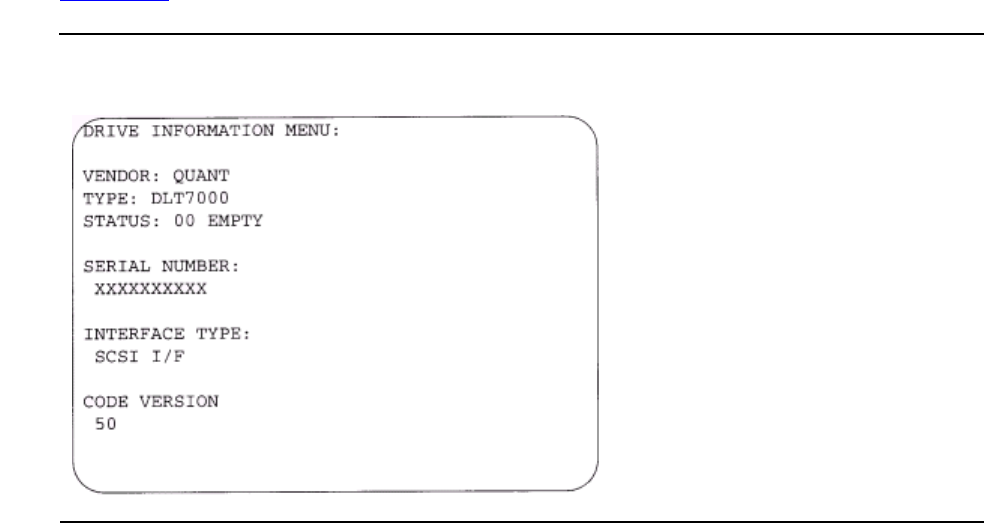

Figure 4-5. Drive Information Menu
Vendor The manufacturer of the tape drive
Type The tape drive model
Status The tape drive’s local number and status
Serial Number The serial number assigned by the tape drive’s
manufacturer
Interface Type The type of client to drive interface (This example shows
a SCSI interface.)
Code Version The firmware version of the tape drive
