Installing Diagnostic and Cleaning Cartridges
Installing Diagnostic and Cleaning Cartridges
If diagnostic and cleaning cartridges are being installed, place them within the tape
library prior to initialization.
Use diagnostic cartridges to run motion and loading tests for cartridge drives.
Automatic cleaning activates the robot to load and unload a cleaning cartridge when a
tape drive requires cleaning.
Labeling Cartridges
Figure 5-2 shows the correct placement of labels for tape cartridges.
To apply the diagnostic and cleaning labels:
1. From the installation kit, obtain the cartridge label packages: STK PN 309952901
for CT9841FC-1 cleaning cartridges.
2. Attach a CLN label to all applicable cleaning cartridges.

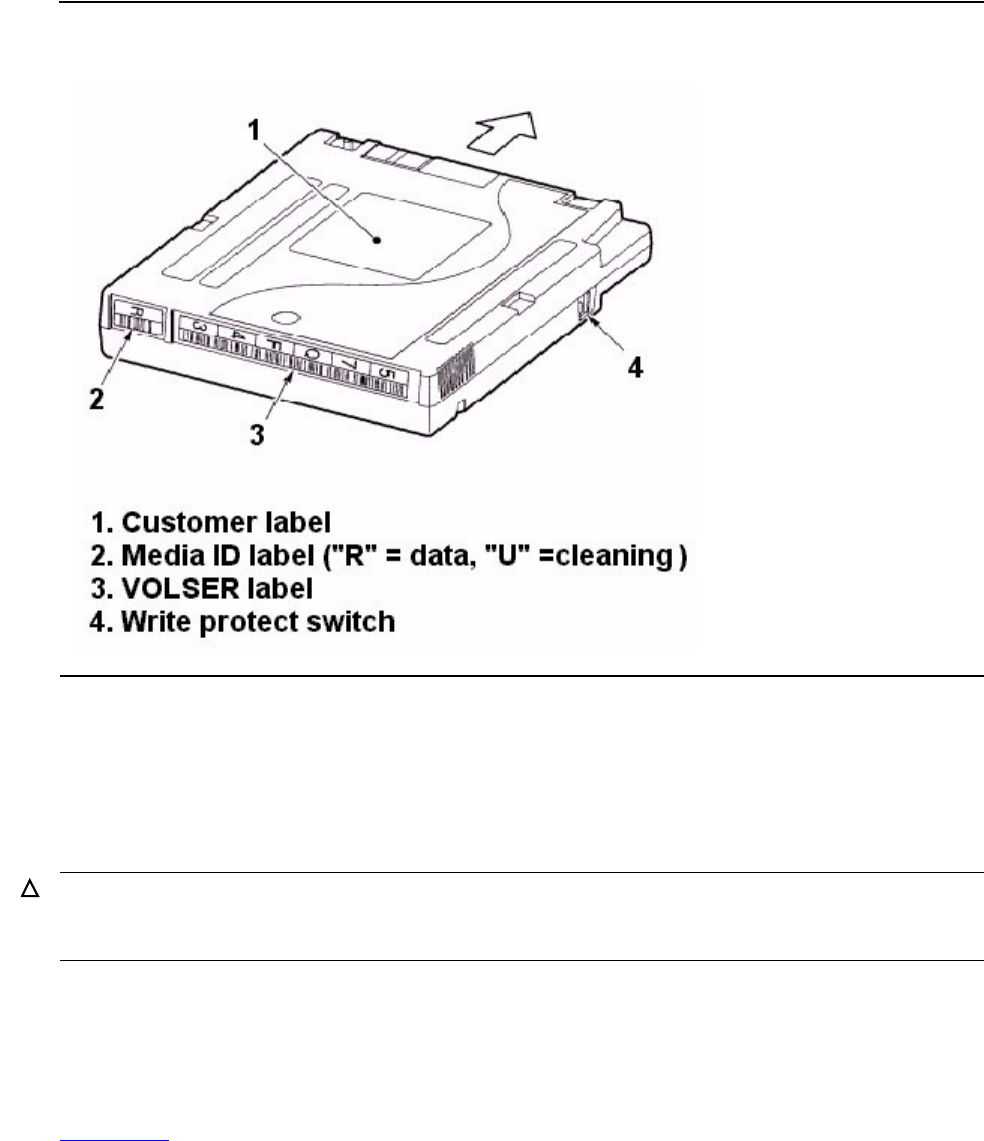

Figure 5-2. CT9841FC-1 Cartridge
Caution. Check with the system administrator for the tape drive cleaning option that is to be
used. The auto clean option is automatically configured when cleaning cartridges are placed in
the reserved area.
