Operating the Tape Library
L700 (CTL700) Installation and User’s Guide—527338-008
6-14
Moving the Robot
3. Open the tape library left front door by using a latch key to unlock both locks (See
Figure 6-2.) Turn the key counterclockwise to unlock the locks, then pull the door
open.
4. Locate the cartridge. See Loading Tapes Into the Tape Library on page 5-18.
5. Insert the cartridge into the tape drive as shown in Figure 6-5.
6. After you insert the cartridge:
•
For the CT9841FC-1 tape drive:
Wait for one of the following messages to appear on the tape drive’s front panel
and take the appropriate action, if necessary:
°
The Ready F (File Protected) message appears when a write-protected
cartridge loads successfully.
°
The Ready U (File Unprotected) message appears when a cartridge that is
not write-protected loads successfully.
°
The NTReady message appears when the tape in the cartridge has lost
tension.

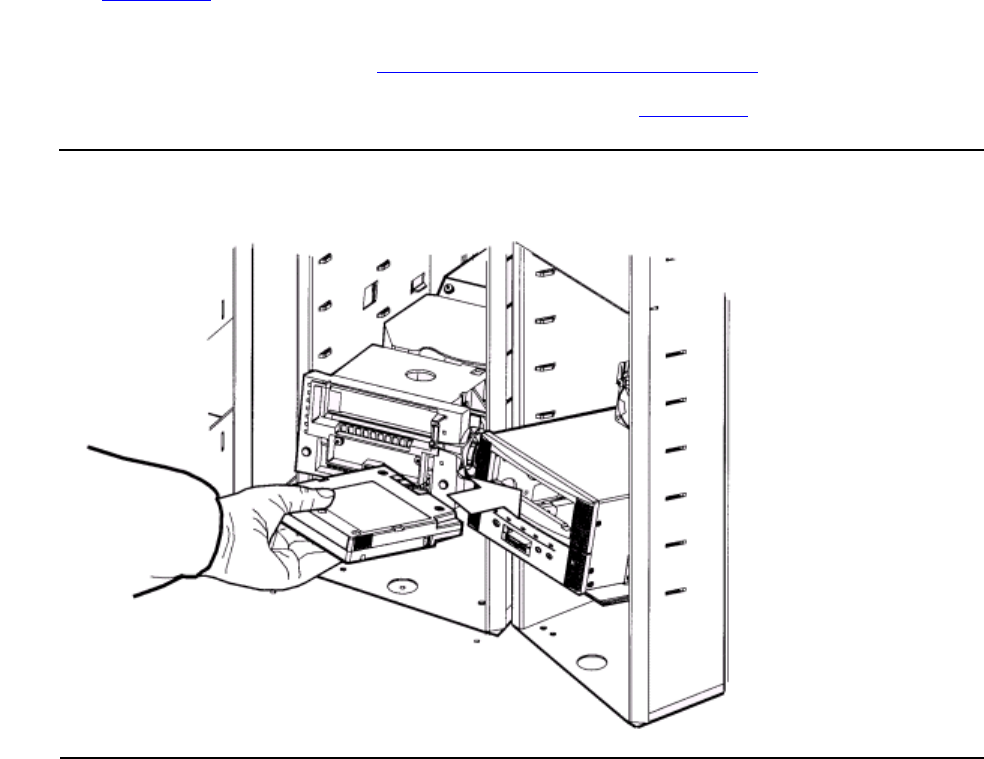

Figure 6-5. Loading a Tape Cartridge Into a Tape Drive
