NonStop NS-Series Operations Guide (H06.03+)

Starting and Stopping the System
HP Integrity NonStop NS-Series Operations Guide—529869-001
15-13
Reloading Processors
To reload a multiple processors, use the Multi-Resource Actions dialog box (available
from the Display menu of the OSM Service Connection):
1. In the Multi-Resource Actions dialog box, select Logical Processor from the
Resource Types list. All Logical Processors in the system will be displayed in the
right-hand pane.
2. Select Reload from the Action list under Selection Criteria.
3. From the list of Logical Processors, select all the processors and click Add to
move them to the lower list (you can select and add one at a time, or Ctrl-click to
select more than one).
4. Once all the processors you want to reload are in the lower list, click Perform
Action.
5. Click OK to the dismiss the confirmation dialog box.
6. In the Logical Processor Reload Parameters dialog box (See Figure 15-2 on
page 15-13), select the appropriate options. See OSM online help for information
about the options.
7. Click OK.
8. Check that the reload initiated successfully. From the Low-Level Link, the
Processor Status dialog box shows the status for the processor as “Executing
NonStop OS.”

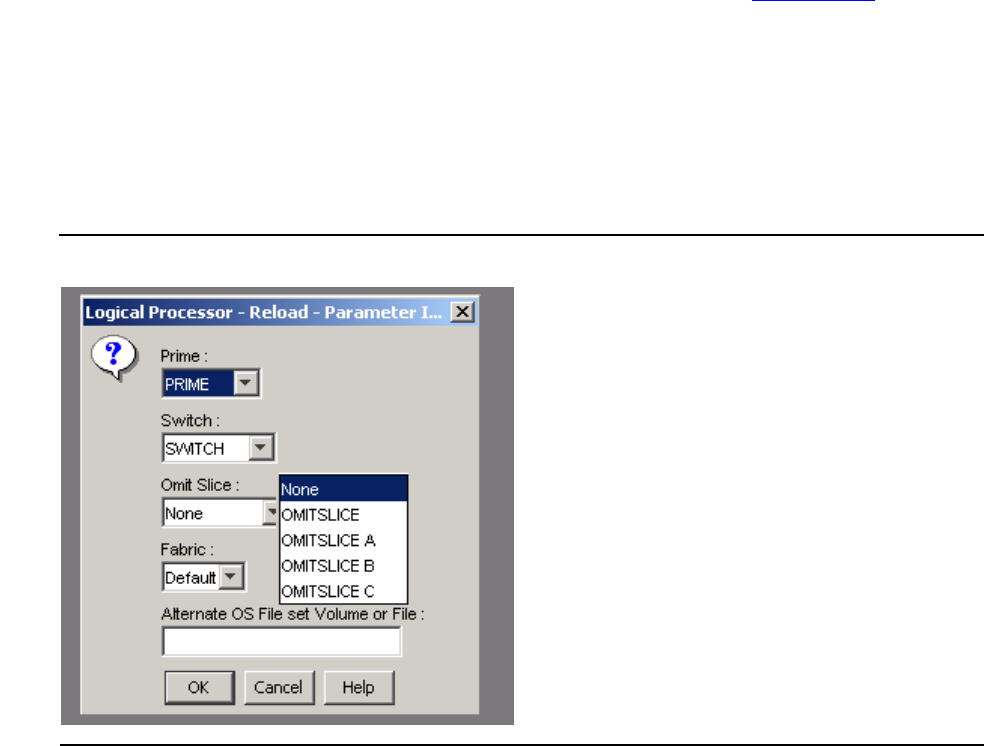

Figure 15-2. Logical Processor Reload Parameters
