System Configuration Guidelines
HP Integrity NonStop NS-Series Planning Guide—529567-005
6-24
Example IOAM and Fibre Channel Disk Module
Configurations
Two FCSAs, Two FCDMs, One IOAM Enclosure

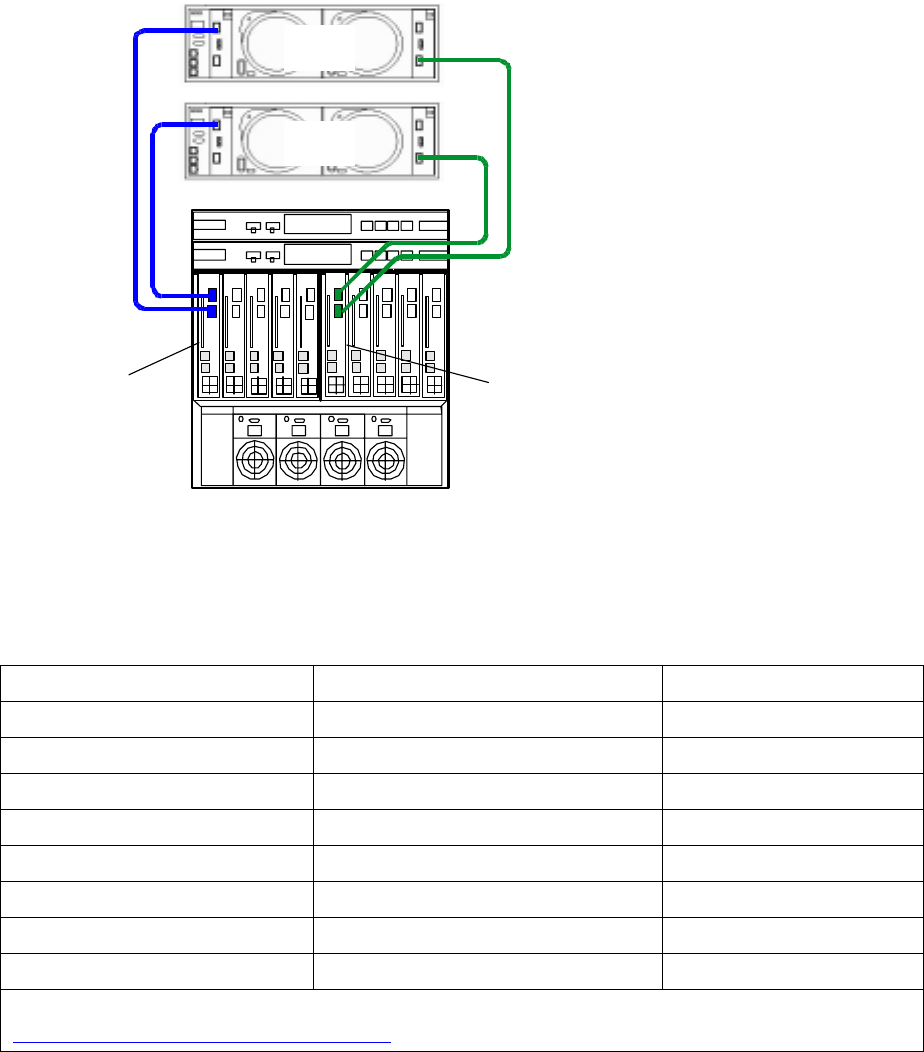

This illustration shows example cable connections between the two FCSAs and the
primary and mirror Fibre Channel disk modules:
This table lists the FCSA group-module-slot-port (GMSP) and disk group-module-
enclosure-slot (GMES) identification for the factory-default system disk locations in the
configuration of four FCSAs, two Fibre Channel disk modules, and one IOAM
enclosure:
Disk Volume Name FCSA GMSP Disk GMES
*
$SYSTEM (primary) 110.2.1.1 and 110.3.1.1 110.211.101
$DSMSCM (primary) 110.2.1.1 and 110.3.1.1 110.211.102
$AUDIT (primary) 110.2.1.1 and 110.3.1.1 110.211.103
$OSS (primary) 110.2.1.1 and 110.3.1.1 110.211.104
$SYSTEM (mirror) 110.2.1.2 and 110.3.1.2 110.212.101
$DSMSCM (mirror) 110.2.1.2 and 110.3.1.2 110.212.102
$AUDIT (mirror) 110.2.1.2 and 110.3.1.2 110.212.103
$OSS (mirror) 110.2.1.2 and 110.3.1.2 110.212.104
*
For an illustration of the Fibre Channel disk module factory-default slot locations, see
Factory-Default Disk Volume Locations
on page 6-20.
FCSA
IOAM Enclosure
VST088.vsd
FCSA
Fibre Channel
Cables
Fibre Channel
Cables
Mirror
FCDM
Primary
FCDM
