System Configuration Guidelines
HP Integrity NonStop NS-Series Planning Guide—529567-005
6-25
Example IOAM and Fibre Channel Disk Module
Configurations
Four FCSAs, Four FCDMs, One IOAM Enclosure

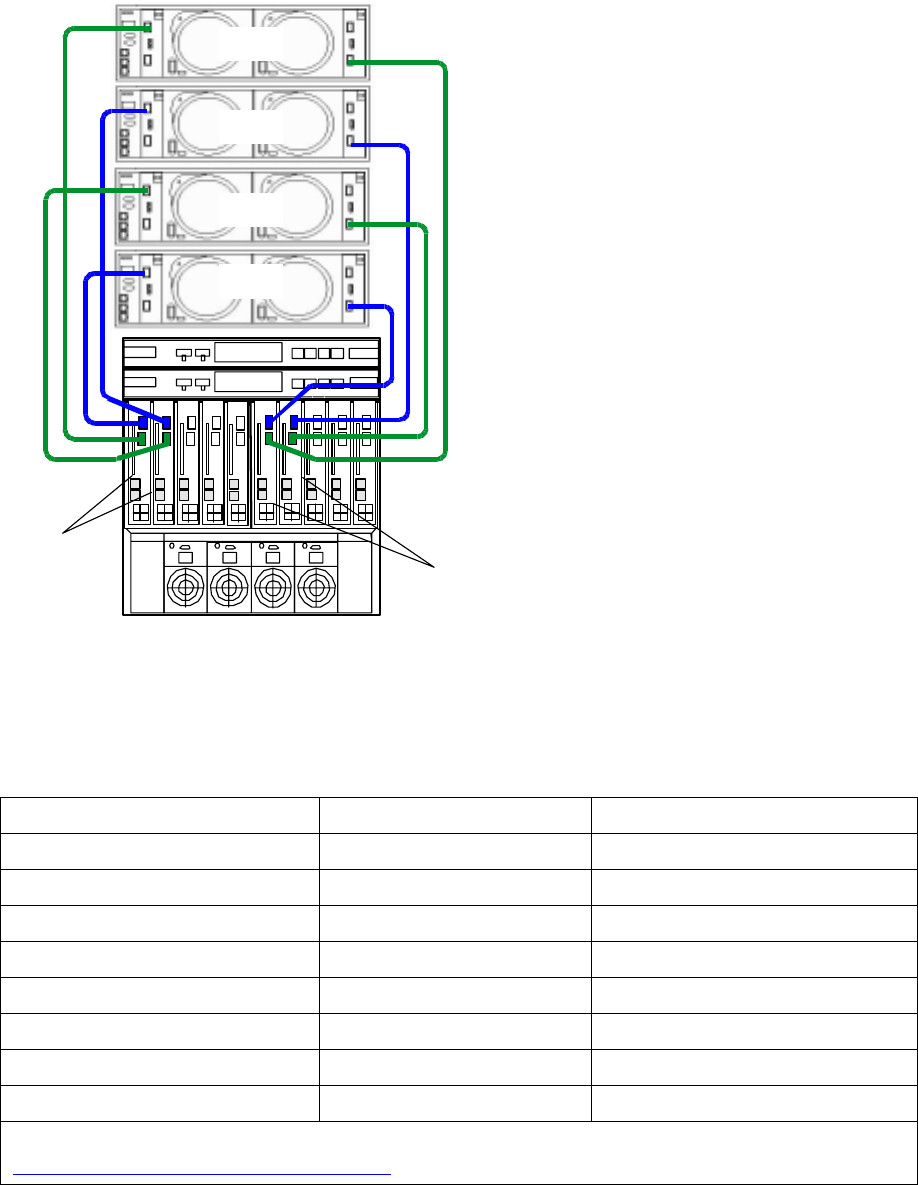

This illustration shows example cable connections between the four FCSAs and the
two sets of primary and mirror Fibre Channel disk modules:
This table lists the FCSA group-module-slot-port (GMSP) and disk group-module-
enclosure-slot (GMES) identification for the factory-default system disk locations in the
configuration of four FCSAs, four Fibre Channel disk modules, and one IOAM
enclosure:
Disk Volume Name FCSA GMSP Disk GMES
*
$SYSTEM (primary 1) 110.2.1.1 and 110.3.1.1 110.211.101
$DSMSCM (primary 1) 110.2.1.1 and 110.3.1.1 110.211.102
$AUDIT (primary 1) 110.2.1.1 and 110.3.1.1 110.211.103
$OSS (primary 1) 110.2.1.1 and 110.3.1.1 110.211.104
$SYSTEM (mirror 1) 110.2.1.2 and 110.3.1.2 110.212.101
$DSMSCM (mirror 1) 110.2.1.2 and 110.3.1.2 110.212.102
$AUDIT (mirror 1) 110.2.1.2 and 110.3.1.2 110.212.103
$OSS (mirror 1) 110.2.1.2 and 110.3.1.2 110.212.104
*
For an illustration of the factory-default slot locations for Fibre Channel disk module, see
Factory-Default Disk Volume Locations on page 6-20.
VST089.vsd
IOAM Enclosure
Primary
FCDM1
FCSAs
FCSAs
Primary
FCDM 2
Mirror
FCDM1
Mirror
FCDM 2
