System Configuration Guidelines
HP Integrity NonStop NS-Series Planning Guide—529567-005
6-26
Example IOAM and Fibre Channel Disk Module
Configurations
Two FCSAs, Two FCDMs, Two IOAM Enclosures

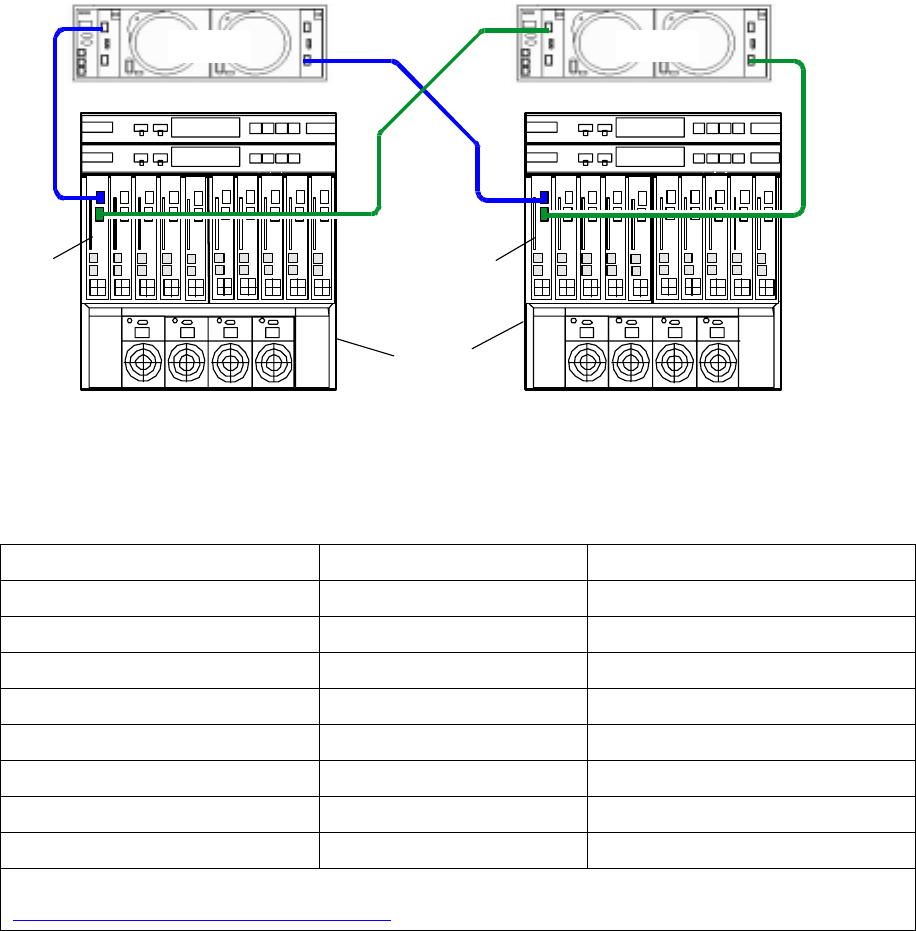

This illustration shows example cable connections between the two FCSAs split
between two IOAM enclosures and one set of primary and mirror Fibre Channel disk
modules:
This table list the FCSA group-module-slot-port (GMSP) and disk group-module-
enclosure-slot (GMES) identification for the factory-default system disk locations in the
configuration of two FCSAs, two Fibre Channel disk modules, and two IOAM
enclosures:
Disk Volume Name FCSA GMSP Disk GMES
*
$SYSTEM (primary 1) 110.2.1.1 and 111.2.1.1 110.211.101
$DSMSCM (primary 1) 110.2.1.1 and 111.2.1.1 110.211.102
$AUDIT (primary 1) 110.2.1.1 and 111.2.1.1 110.211.103
$OSS (primary 1) 110.2.1.1 and 111.2.1.1 110.211.104
$SYSTEM (mirror 1) 110.2.1.2 and 111.2.1.2 110.212.101
$DSMSCM (mirror 1) 110.2.1.2 and 111.2.1.2 110.212.102
$AUDIT (mirror 1) 110.2.1.2 and 111.2.1.2 110.212.103
$OSS (mirror 1) 110.2.1.2 and 111.2.1.2 110.212.104
*
For an illustration of the factory-default slot locations for Fibre Channel disk modules, see
Factory-Default Disk Volume Locations
on page 6-20.
IOAM
Enclosure
VST086.vsd
Primary
FCDM
Mirror
FCDM
FCSA
FCSA
