NonStop NS-Series Planning Guide (H06.04+)

System Configuration Guidelines
HP Integrity NonStop NS-Series Planning Guide—529567-005
6-27
Example IOAM and Fibre Channel Disk Module
Configurations
Four FCSAs, Four FCDMs, Two IOAM Enclosures

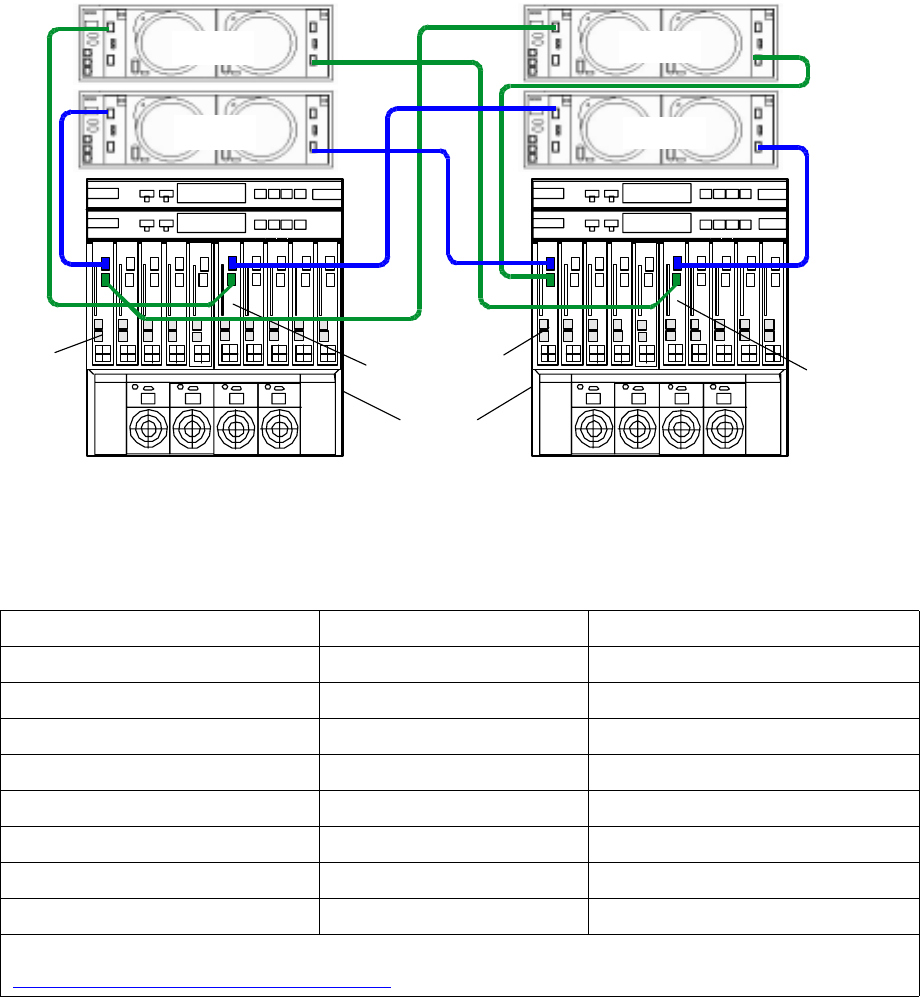

This illustration shows example cable connections between the four FCSAs split
between two IOAM enclosures and two sets of primary and mirror Fibre Channel disk
modules:
This table lists the FCSA group-module-slot-port (GMSP) and disk group-module-
enclosure-slot (GMES) identification for the factory-default system disk locations in the
configuration of four FCSAs, four Fibre Channel disk modules, and two IOAM
enclosures:
Disk Volume Name FCSA GMSP Disk GMES
*
$SYSTEM (primary) 110.2.1.1 and 111.2.1.1 110.211.101
$DSMSCM (primary) 110.2.1.1 and 111.2.1.1 110.211.102
$AUDIT (primary) 110.2.1.1 and 111.2.1.1 110.211.103
$OSS (primary) 110.2.1.1 and 111.2.1.1 110.211.104
$SYSTEM (mirror) 110.2.1.2 and 111.2.1.2 110.212.101
$DSMSCM (mirror) 110.2.1.2 and 111.2.1.2 110.212.102
$AUDIT (mirror) 110.2.1.2 and 111.2.1.2 110.212.103
$OSS (mirror) 110.2.1.2 and 111.2.1.2 110.212.104
*
For an illustration of the Fibre Channel disk module factory-default slot locations, see
Factory-Default Disk Volume Locations
on page 6-20
VST087.vsd
FCSA
Mirror
FCDM 1
Primary
FCDM 2
Mirror
FCDM 2
FCSA
FCSA
IOAM
Enclosure
FCSA
Primary
FCDM 1
