Example IOAM and Fibre Channel Disk Module
Configurations
number as its primary disk in not required, but it is recommend to simplify the physical
management and identification of the disks.
This table list the FCSA group-module-slot-port (GMSP) and disk group-module-
enclosure-slot (GMES) identification for the factory-default system disk locations in a
daisy-chained configuration:
Disk Volume Name FCSA GMSP Disk GMES
*
$SYSTEM 110.2.1.1 and 110.3.1.1 110.211.101
$DSMSCM 110.2.1.1 and 110.3.1.1 110.211.102
$AUDIT 110.2.1.1 and 110.3.1.1 110.211.103
$OSS 110.2.1.1 and 110.3.1.1 110.211.104
*
For an illustration of the Fibre Channel disk module factory-default slot locations, see
Factory-Default Disk Volume Locations on page 6-20.

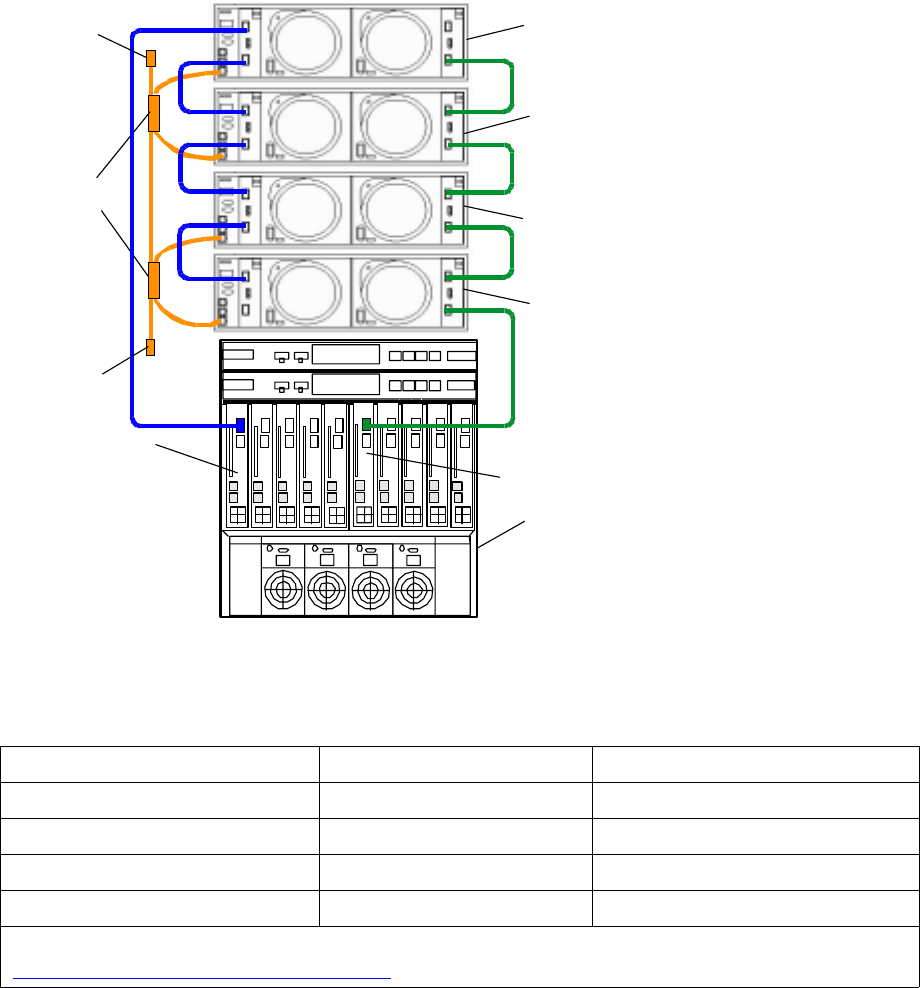

IOAM
Enclosure
VST081.vsd
FCDM 2
FCDM 1
B Side A Side
FCSA
ID Expanders
FCDM 4
FCSA
FCDM 3
Terminator
Terminator
Fiber-Optic
Cables
Fibrer-Optic
Cables
