System Configuration Guidelines
HP Integrity NonStop NS-Series Planning Guide—529567-005
6-31
G4SAs to Networks

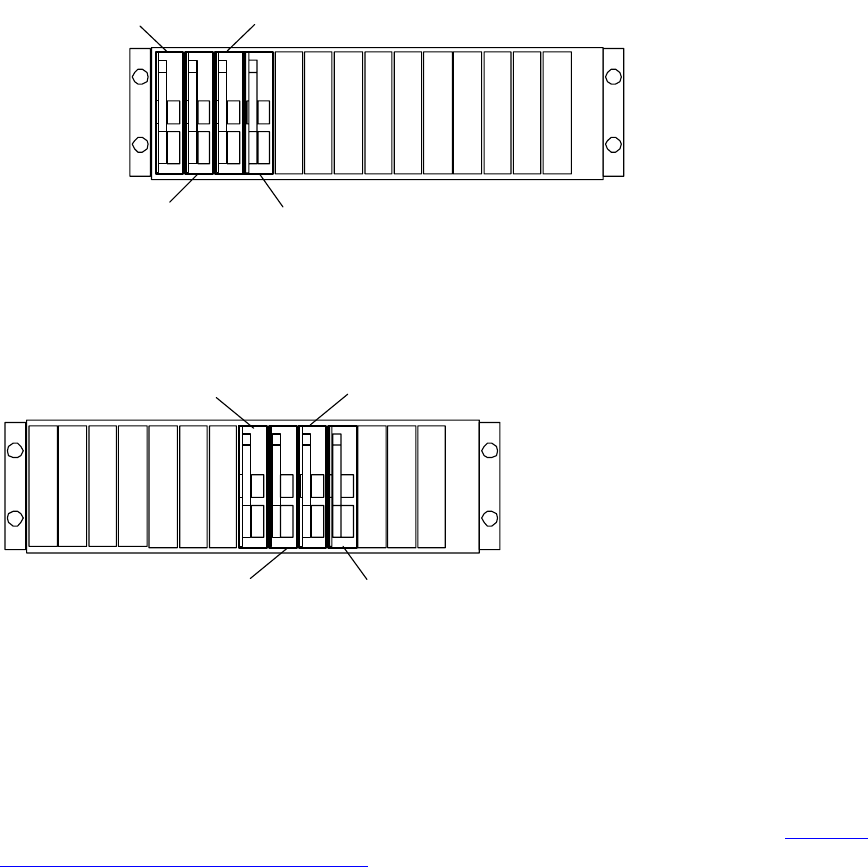

This illustration shows the factory-default locations for the configurations of four FCSAs
and three Fibre Channel disk modules where the primary system file disk volumes are
in Fibre Channel disk module 1:
This illustration shows the factory-default locations for the configurations of four FCSAs
with three Fibre Channel disk modules where the mirror system file disk volumes are in
Fibre Channel disk module 3:
G4SAs to Networks
Currently only the G4SA provides Gigabit connectivity between Integrity NonStop NS-
series systems and Ethernet LANs. The G4SA is an end node on the ServerNet and
uses either fiber-optic or copper cable for connectivity to user application LANs, as well
as for the dedicated service LAN. For more information on the G4SA, see Gigabit
Ethernet 4-Port ServerNet Adapter on page 5-19 or the Gigabit 4-Port ServerNet
Adapter Installation and Support Guide.
Fibre Channel
Disk Module
(front)
VSD.082.vst
$SYSTEM (slot 1)
$DSMSCM (slot 2)
$AUDIT (slot 3)
$OSS (slot 4)
Fibre Channel
Disk Module
(front)
VSD.083.vst
$SYSTEM - mirror (slot 8)
$DSMSCM - mirror (slot 9)
$AUDIT - mirror (slot 10)
$OSS - mirror (slot 11)
