System Hardware Overview
HP Integrity NonStop NS-Series Planning Guide—529567-005
1-2
Hardware Enclosures and Configurations

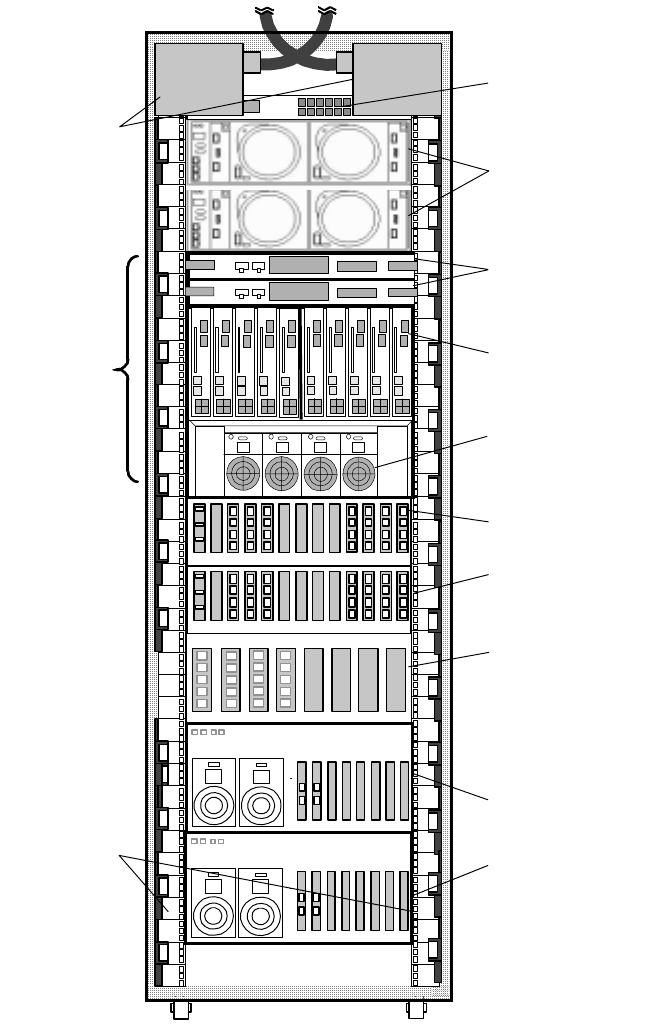

This figure shows an example modular cabinet with a duplex processor and hardware
for a complete system (rear view).
A large number of enclosure combinations are possible within the modular cabinets
that make up an Integrity NonStop NS-series server. The applications and purpose of
any NonStop-NS series server determine the number and combinations of the
enclosures and modular cabinets.
IOAM
Enclosure
Power
Distribution
Units
(PDUs)
38
39
40
41
42
33
34
35
36
37
28
29
30
31
32
23
24
25
26
27
18
19
20
21
22
13
14
15
16
17
08
09
10
11
12
03
04
05
06
07
01
02
38
39
40
41
42
33
34
35
36
37
28
29
30
31
32
13
14
15
16
17
08
09
10
11
12
03
04
05
06
07
01
02
23
24
25
26
27
18
19
20
21
22
Maintenance
Switch
ServerNet Switch
Boards
To AC Power Source or Site UPS
IOAM Power
Supplies
ServerNet
Adapters
PDU
Junction
Boxes
NSBE A
NSBE B
LSU
Enclosure
P-Switch
X Fabric
P-Switch
Y Fabric
VST421.vsd
Fibre Channel
Disk Modules
