Example Configurations
HP Integrity NonStop NS-Series Planning Guide—529567-005
7-8
Example System With UPS and ERM
Example System With UPS and ERM

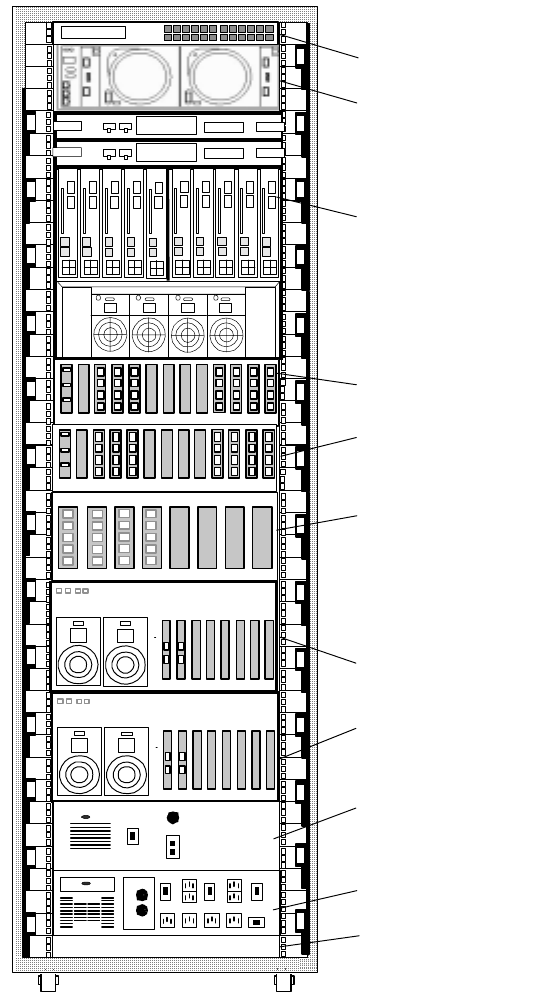

UPS and ERM (two ERMs maximum) must reside in the bottom of the cabinet with the
UPS at cabinet offset 2U. A 1U keepout panel is installed in the 1U offset of the cabinet
as shown in this illustration:
Uninterruptible Power
Supply (UPS)
Extended Runtime
Module (ERM)
