Example Configurations

HP Integrity NonStop NS-Series Planning Guide—529567-005

7-14

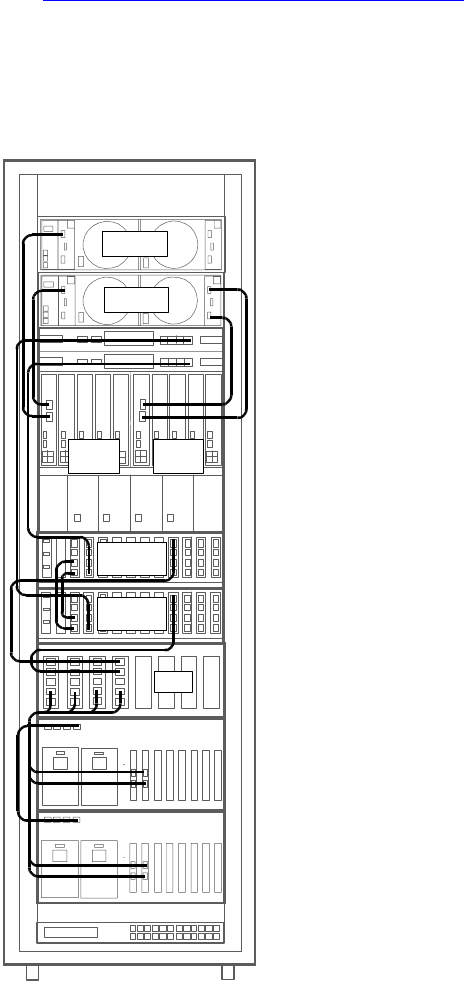

Example 4-Processor Duplex System Cabling

This illustration shows and example 4-processor duplex system in a single cabinet.

This simplified, conceptual representation shows the X and Y ServerNet cabling

between the NonStop Blade Element, LSU, p-switch, and IOAM enclosures. For clarity,

power and Ethernet cables are not shown. For cable-by-cable interconnect diagrams,

see Internal ServerNet Interconnect Cabling on page 6-3.

Cable management hardware that is part of each modular enclosure and also the rack

is not shown. Therefore, actual cable routing using the cable management hardware is

different from that shown. For detailed information on cable routing, refer to the

NonStop NS-Series Hardware Installation Manual.

This illustration also shows an example of the modular I/O hardware with simplified

representation of the X and Y ServerNet cabling between the IOAM enclosures and the

p-switches and the simplified cabling between the FCSAs and Fibre Channel disk

modules. The example Fibre Channel disk module configuration for the group 110

VST.703.vsd

FCDM

IOAM

110.3

IOAM

110.2

NSBE 1A

NSBE 1B

LSU

P-Switch
