Control, Configuration, and Maintenance Tools
HP Integrity NonStop NS-Series Planning Guide—529567-005
B-6
Maintenance Architecture
on the same subnet. If a server is configured to receive dial-ins, the server must
occupy the same subnet as the system console receiving the dial-ins.
For best OSM performance, no more than 10 servers should be included within one
subnet.
Because all servers are shipped with the same preconfigured IP addresses for MSP0,
MSP1, $ZTCP0, and $ZTCP1, you must change these IP addresses for the second
and subsequent servers before you can add them to the LAN.
You must change the preconfigured IP addresses of the second and subsequent
system consoles before you can add them to the LAN.
Maintenance Architecture

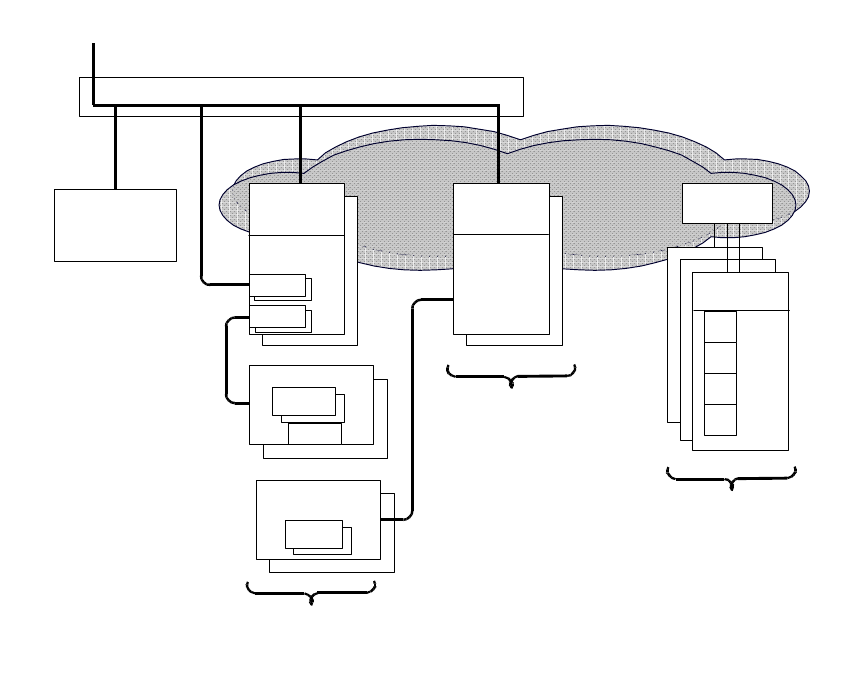

This simplified illustration shows the three elements of the maintenance architecture
plus the OSM maintenance console applications:
As this illustration shows, the OSM console connects to a closed and private service
LAN, connecting these modules together via a maintenance switch (a ProCurve 2524):
•
Processor switch (p-switch)
•
I/O adapter module (IOAM)
VST517.vsd
To Remote
Support Center
ServerNet Fabric
LSU
NSBE
PE
PE
PE
PE
P-Switch
P-Switch
ME
IOAM
IOAM
ME
OSM
Console
Maintenance Switch
Maintenance
LAN
FCSA
G4SA
NonStop
S-Series I/O
Enet
Processor
Functional
Element
Fabric
Functional
Element
I/O
Functional
Element
FCDM
EMU
FC-AL
