Control, Configuration, and Maintenance Tools
HP Integrity NonStop NS-Series Planning Guide—529567-005
B-17
Dedicated Service LAN Links to Two IOAM
Enclosures
Dedicated Service LAN Links to Two IOAM Enclosures

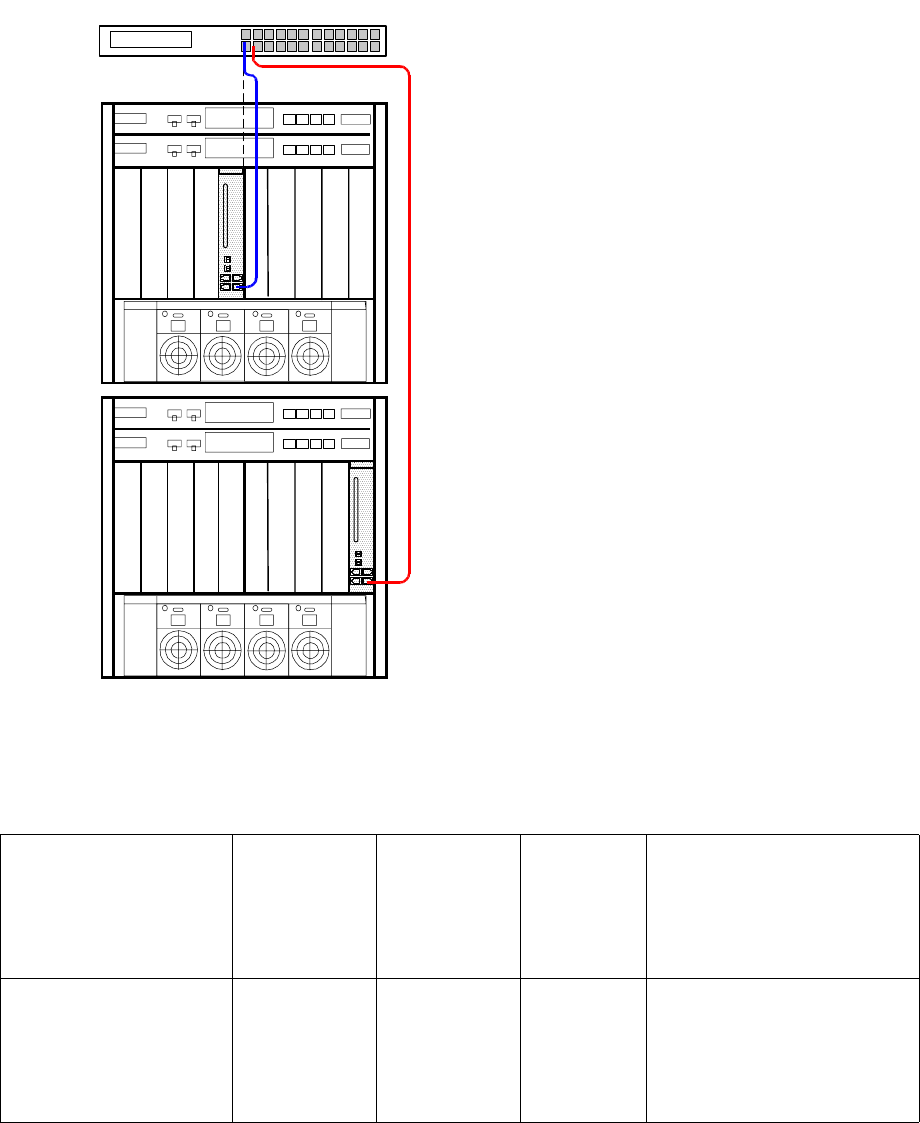

This illustration shows dedicated service LAN cables connected to G4SAs in two IOAM
enclosures and to the maintenance switch:
The values in this table show the identification for the G4SAs in the preceding
illustration:
GMS for G4SA
Location in IOAME G4SA PIF G4SA PIF
TCP/IP
Stack IP Configuration
110.2.5 G11025.0.A L1102R $ZTCP0 IP: 192.231.36.10
GW: 192.231.36.9
Subnet: %hFFFFFF00
Hostname: osmlanx
111.3.5 G11135.0.A L1113R $ZTCP1 IP: 192.231.36.11
GW: 192.231.36.9
Subnet: %hFFFFFF00
Hostname: osmlany
VST341.vsd
Maintenance Switch
Module 2
Module 3
IOAM
Enclosure
(Group
110)
IOAM
Enclosure
(Group
111)
