Dedicated Service LAN Links With IOAM Enclosure
and NonStop S-Series I/O Enclosure
Dedicated Service LAN Links With IOAM Enclosure and NonStop
S-Series I/O Enclosure

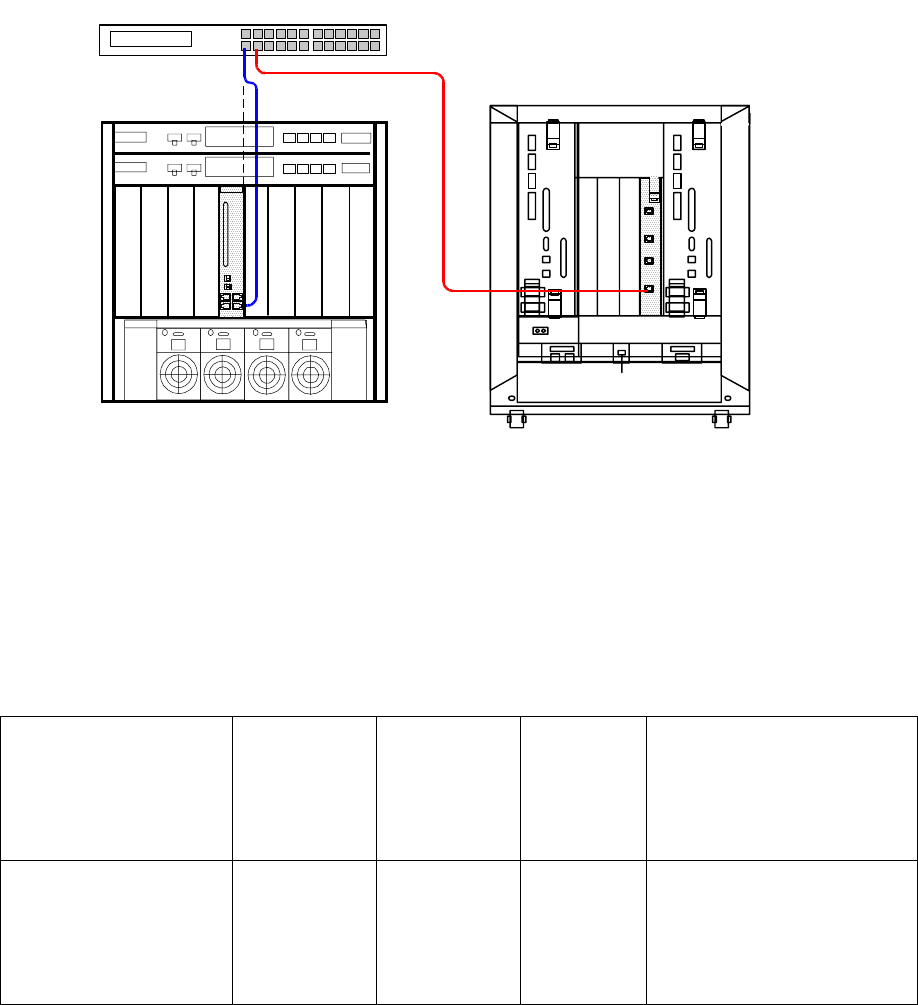

This illustration shows dedicated service LAN cables connected to a G4SA in an IOAM
enclosure and at least one NonStop S-series Ethernet adapter (E4SA, FESA, or
GESA) in a NonStop S-series I/O enclosure (module 12 in this example) and to the
maintenance switch:
In this example, the G4SA in module 2 of the IOAM enclosure connects to the X
ServerNet fabric while the adapter in the NonStop S-series I/O enclosure connects to
the Y ServerNet fabric using the dual-ported slot 54. For information on the NonStop
S-series I/O enclosure, see the NonStop S-Series Planning and Configuration Guide.
The values in this table show the identification for the adapters in the preceding
illustration:
GMS for G4SA
Location in IOAME G4SA PIF G4SA PIF
TCP/IP
Stack IP Configuration
110.2.5 G11025.0.A L1102R $ZTCP0 IP: 192.231.36.10
GW: 192.231.36.9
Subnet: %hFFFFFF00
Hostname: osmlanx
12.1.54 E1254.0.A L12C $ZTCP1 IP: 192.231.36.11
GW: 192.231.36.9
Subnet: %hFFFFFF00
Hostname: osmlany
VST342.vsd
Maintenance Switch
Module 2
Module 3
IOAM
Enclosure
(Group
110)
NonStop S-Series I/O
Enclosure (Module 12)
