Control, Configuration, and Maintenance Tools
HP Integrity NonStop NS-Series Planning Guide—529567-005
B-19
Dedicated Service LAN Links With NonStop S-
Series I/O Enclosure
Dedicated Service LAN Links With NonStop S-Series I/O
Enclosure

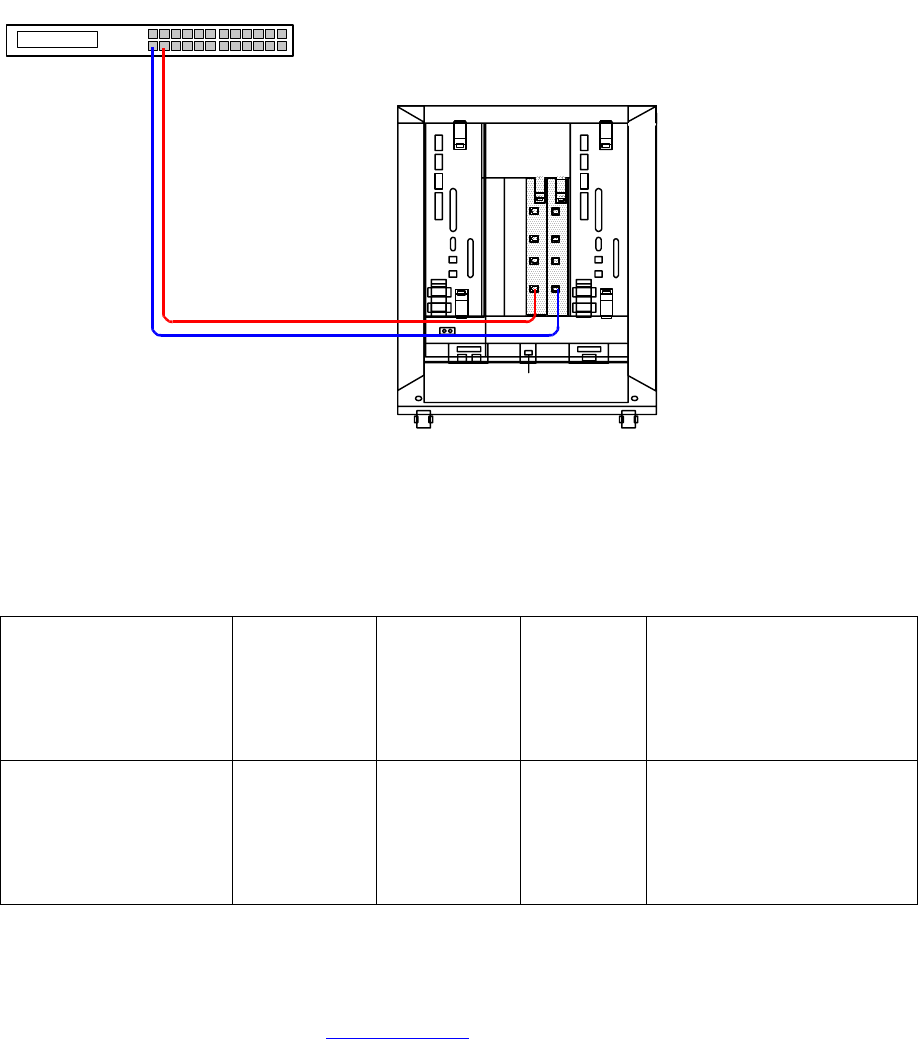

This illustration shows dedicated service LAN cables connected to two NonStop S-
series Ethernet adapters (E4SA, FESA, or GESA) in a NonStop S-series I/O enclosure
(module 12 in this example) and to the maintenance switch:
This configuration can be used in cases where a NonStop NS-series system does not
ahve and IOAM enclosure and only the NonStop S-series I/O enclosure provides the
system I/O connections and mass storage:
Initial Configuration for a Dedicated Service LAN
New systems are shipped with an initial set of IP addresses configured. For listing of
these initial IP addresses, see IP Addresses
on page B-11.
GMS for G4SA
Location in IOAME G4SA PIF G4SA PIF
TCP/IP
Stack IP Configuration
11.1.53 E1153.0.A L118 $ZTCP0 IP: 192.231.36.10
GW: 192.231.36.9
Subnet: %hFFFFFF00
Hostname: osmlanx
11.1.54 E1154.0.A L11C $ZTCP1 IP: 192.231.36.11
GW: 192.231.36.9
Subnet: %hFFFFFF00
Hostname: osmlany
VST343.vsd
Maintenance Switch
NonStop S-Series I/O
Enclosure (Module 12)
