System Installation Specifications
HP Integrity NonStop NS-Series Planning Guide—529567-005
3-6
Model R5500 XR Integrated UPS
Model R5500 XR Integrated UPS
For complete information and specifications, refer to the HP UPS R5500 XR Models
User Guide (HP part number 351642).
Dimensions and Weights

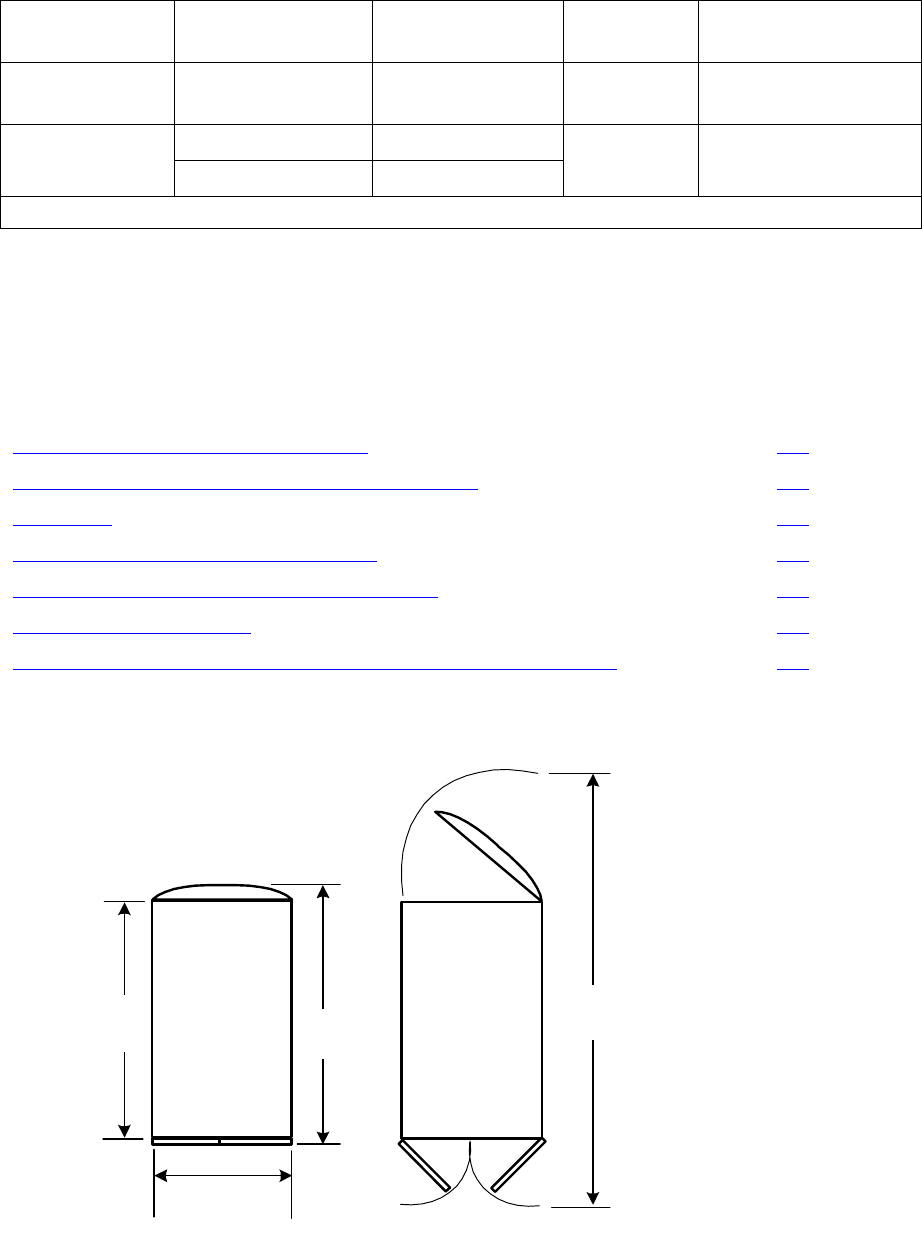

Plan View of the Modular Cabinet
Version
Operating
Voltage Settings
Power Out
(VA/Watts) Input Plug Branch Circuit
North America
and Japan
200/208*, 220,
230, 240
5000/4500 L6-30P Dedicated 30 Amp
Other
International
200, 230*, 240 6000/5400 IEC-309 32
Amp
Dedicated 30 Amp
If 200/208 Then 5000/4500
* Factory-default setting
Topic Page
Plan View of the Modular Cabinet 3-6
Service Clearances for the Modular Cabinet 3-6
Unit Sizes 3-7
Modular Cabinet PDU Keepout Panel 3-7
Modular Cabinet Physical Specifications 3-7
Enclosure Dimensions 3-8
Modular Cabinet and Enclosure Weights With Worksheet 3-9
VST102.vsd
23.5 in.
(59.7 cm)
40 in.
(102 cm)
44 in.
(112 cm)
75.5 in.
(192 cm)
