Integrity NonStop NS-Series System Description
HP Integrity NonStop NS-Series Planning Guide—529567-005
4-10

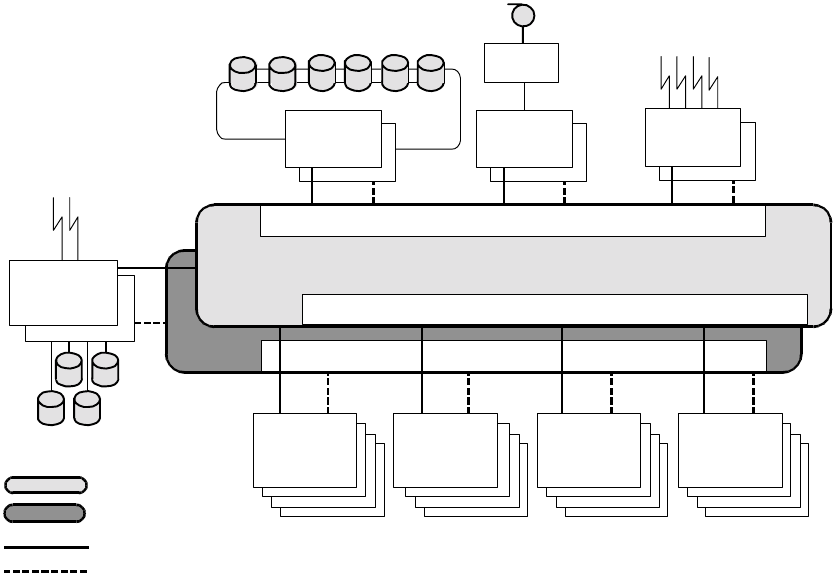

Simplified ServerNet System Diagram
Simplified ServerNet System Diagram
This simplified diagram shows the ServerNet architecture in the Integrity NonStop
NS-series system:
It shows the X and Y ServerNet fabrics with the NonStop Blade Complexes, ServerNet
adapters, and NonStop S-series I/O enclosure connections to the fabrics. Routers
within the p-switches and IOAM enclosures make up the flexible connectivity that is
inherent to the ServerNet network
P-Switch ServerNet Pathways
This drawing shows the ServerNet communication pathways through the p-switch PICs
and routers. Two p-switches are required in each system; one p-switch serves the
VST601.vsd
ServerNet link (Y Fabric)
ServerNet link (X Fabric)
X Fabric
Y Fabric
Ethernet
Disks
Y Fabric
Router
ServerNet
Adapter
ServerNet
Adapter
ServerNet
Adapter
NonStop
S-Series I/O
Enclosure
Ethernet
X Y
NSBC
X Y
NSBC
X Y
NSBC
X Y
NSBC
P-Switch
P-Switch
I/O Adapter Module
X Fabric
