Integrity NonStop NS-Series System Description
HP Integrity NonStop NS-Series Planning Guide—529567-005
4-11
IOAM Enclosure ServerNet Pathways
ServerNet X fabric and the other the ServerNet Y fabric. In this drawing, the
nomenclature PIC n means the PIC in slot n. For example, PIC 4 is the PIC in slot 4.

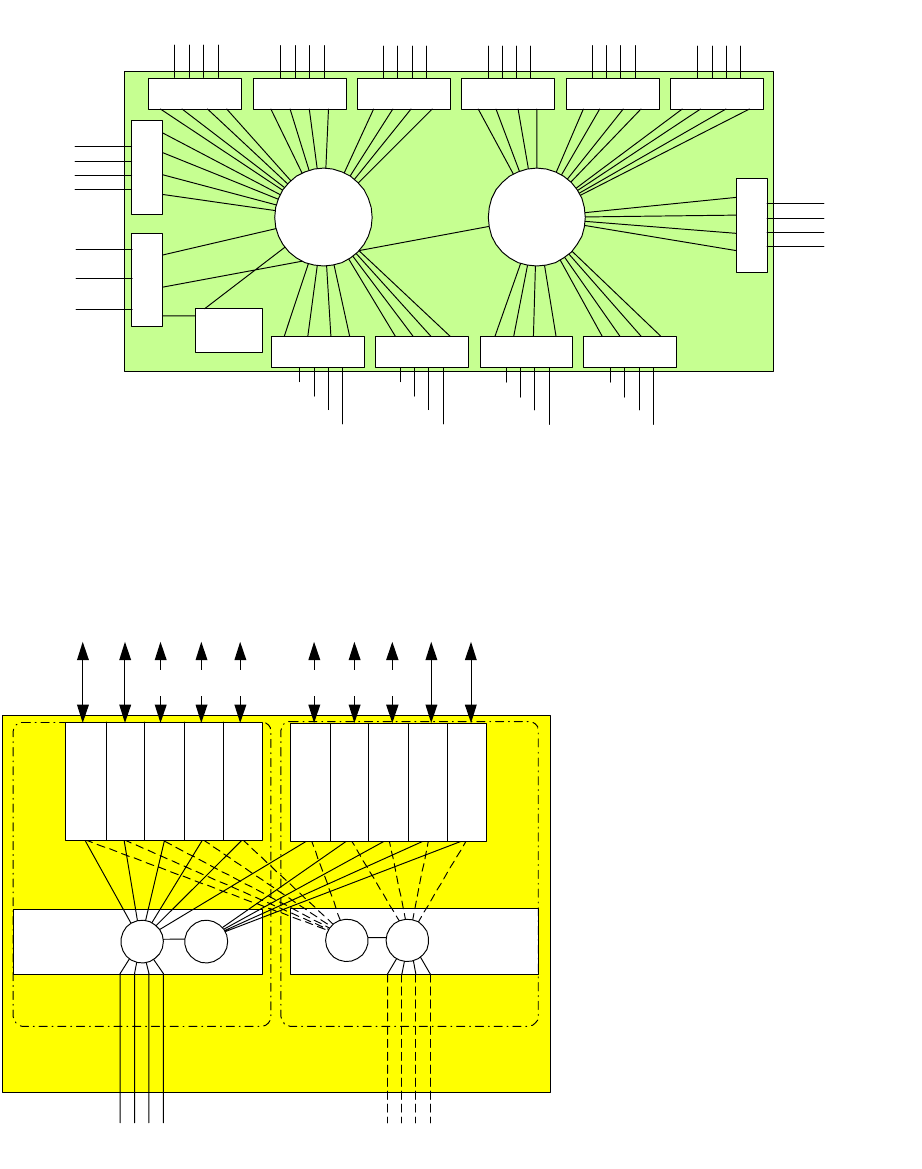

IOAM Enclosure ServerNet Pathways
This drawing shows the ServerNet communication pathways through the routers in
each ServerNet switch board to the ServerNet I/O adapters in each IOAM module.
VST607.vsd
P
I
C
3
P
I
C
2
P
I
C
1
PIC 4 PIC 5
PIC 6 PIC 7 PIC 8 PIC 9
Maint.
Logic
RouterRouter
P-Switch
Enclosure
One Optic Line From Each
LSU Optic Adapter PIC
To Other
P-Switch
To
Cluster
Switch
Maint.
Default Processor Number 0
PIC 10
1
2
3
5
6
7
4
9
10
11
8
13
14
15
12
PIC 13PIC 12PIC 11
Four Optic Lines to Each
IOAM ServerNet Switch Board
One Optic Line to IOMF 2 CRU in
NonStop S-Series I/O Enclosure
or
VST606.vsd
Fibre Channel or Ethernet I/O
IOAM
Module 2
IOAM
Module 3
IOAM
Enclosure
X ServerNet -- Four Optic
Lines From P-Switch
Y ServerNet
Switch
Board
X ServerNet
Switch
Board
Adapter 5
Adapter 4
Adapter 3
Adapter 2
Adapter 1
Adapter 5
Adapter 4
Adapter 3
Adapter 2
Adapter 1
R
R R
R
Y ServerNet -- Four Optic
Lines From P-Switch
