Modular System Hardware
HP Integrity NonStop NS-Series Planning Guide—529567-005
5-12
LSU Indicator LEDs

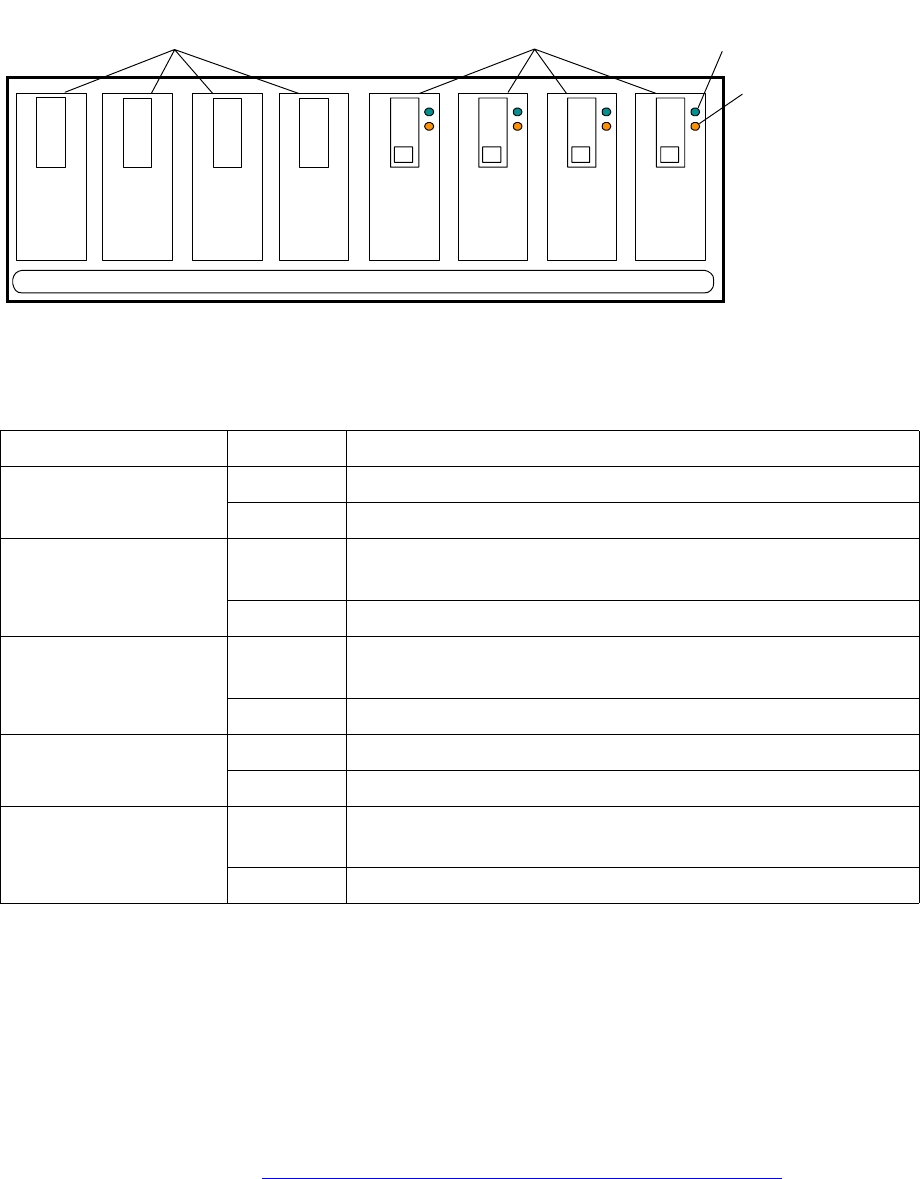

This illustration shows an example LSU configuration as viewed from the front of the
enclosure and equipped with four LSU logic boards in positions 50 through 53:
LSU Indicator LEDs
Processor Switch
The processor switch, or p-switch, provides the first level of ServerNet fabric
interconnect for the Integrity NonStop NS-series processors. ServerNet connection
from the LSU also defines the ID numbers, 0 through 15, for the logical processors
within the system. In cases where NonStop S-series I/O enclosures provide I/O
capabilities and storage for the Integrity NonStop NS-series system, the ServerNet
connection to the p-switch determines the NonStop S-series I/O enclosure group
number, as described in NonStop S-Series I/O Enclosure Group Numbers on
page 5-32.
LED State Meaning
LSU Optics Adapter
PIC (green LED)
Green Power is on; LSU is available for normal operation.
Off Power is off.
LSU Optics Adapter
PIC (amber LED)
Amber Power is in progress, board is being reset, or a fault
exists.
Off Normal operation or powered off.
LSU Optics Adapter
connectors (green
LEDs)
Green NonStop Blade Element optics link or ServerNet link is
functional.
Off Power is off, or a fault exists (amber LED is on).
LSU Logic Board
(green LED)
Green Power is on with LSU available for normal operation.
Off Power is off.
LSU Logic Board
PIC (amber LED)
Amber Power is in progress, board is being reset, or a fault
exists.
Off Normal operation or powered off.
LSU
Enclosure
(front)
VST09.vsd
5057 56 55 54 53 55 51
K set in LSU positions 54-57 for
logical processors 8 through 15
J set in LSU positions 50-53 for
logical processors 0 through 7
LSU Logic Board Positions (Slots) 50 - 57
Green LED
Amber LED
