Modular System Hardware
HP Integrity NonStop NS-Series Planning Guide—529567-005
5-14
P-Switch Indicator LEDs
°
Environmental sense and control (ESC)
°
Coldload of TACL and EMS windows
°
ServerNet configuration

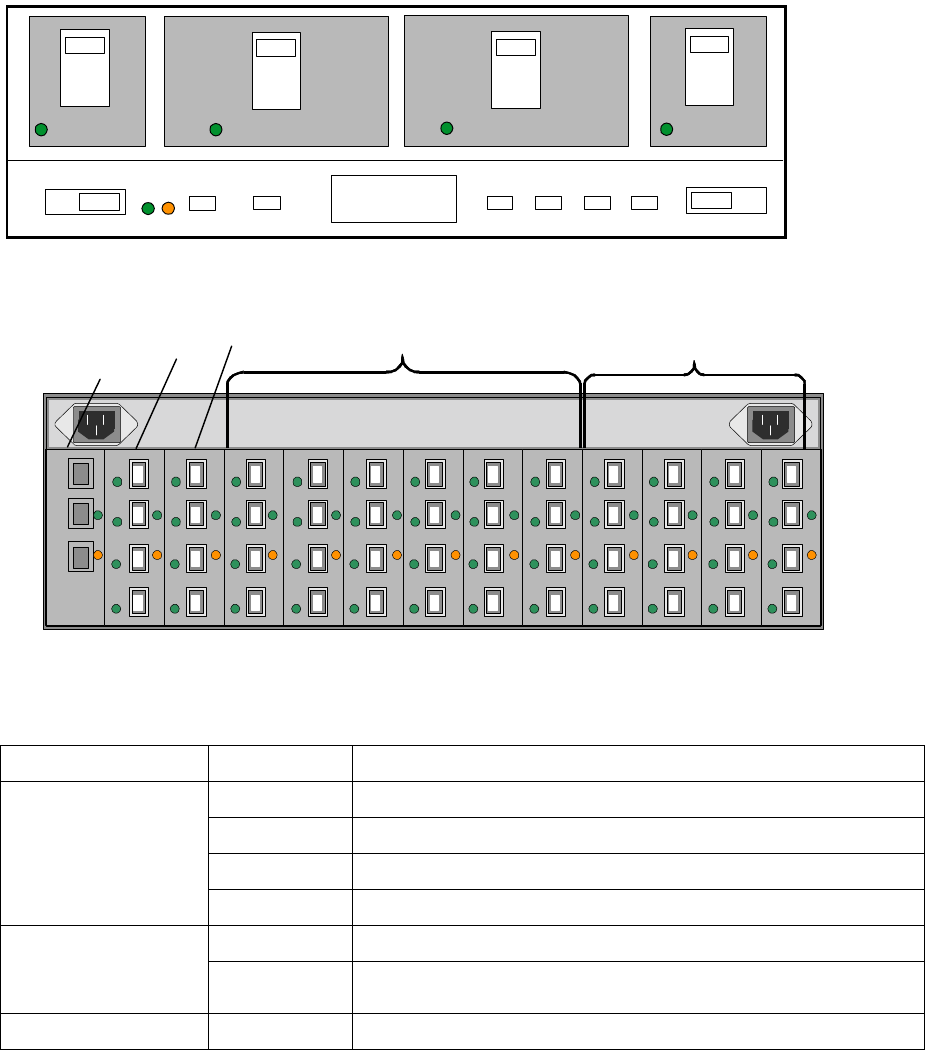

This illustration shows the front of the p-switch:
This illustration shows the rear of a fully populated p-switch:
P-Switch Indicator LEDs
LED State Meaning
All PICs Green Power is on with PIC available for normal operation.
Off Power is off.
Amber A fault exists.
Off Normal operation or powered off.
PIC ServerNet
connector (green
LED)
Green ServerNet link is functional.
Off ServerNet link is not functional.
Display Messages Status messages are displayed.
VST402.vsd
PWR
PWR
FAN
FAN
DISPLAY
SPON
100/10 ENET 1 2 3 4
VST500.vsd
Maintenance PIC
Cluster PIC
Crosslink PIC
I/O PICs
Processor PICs
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
EFT
Slots 1
13
2 3 4 5 6 7 8
1211109
