Modular System Hardware
HP Integrity NonStop NS-Series Planning Guide—529567-005
5-17
I/O Adapter Module (IOAM) Enclosure and I/O
Adapters

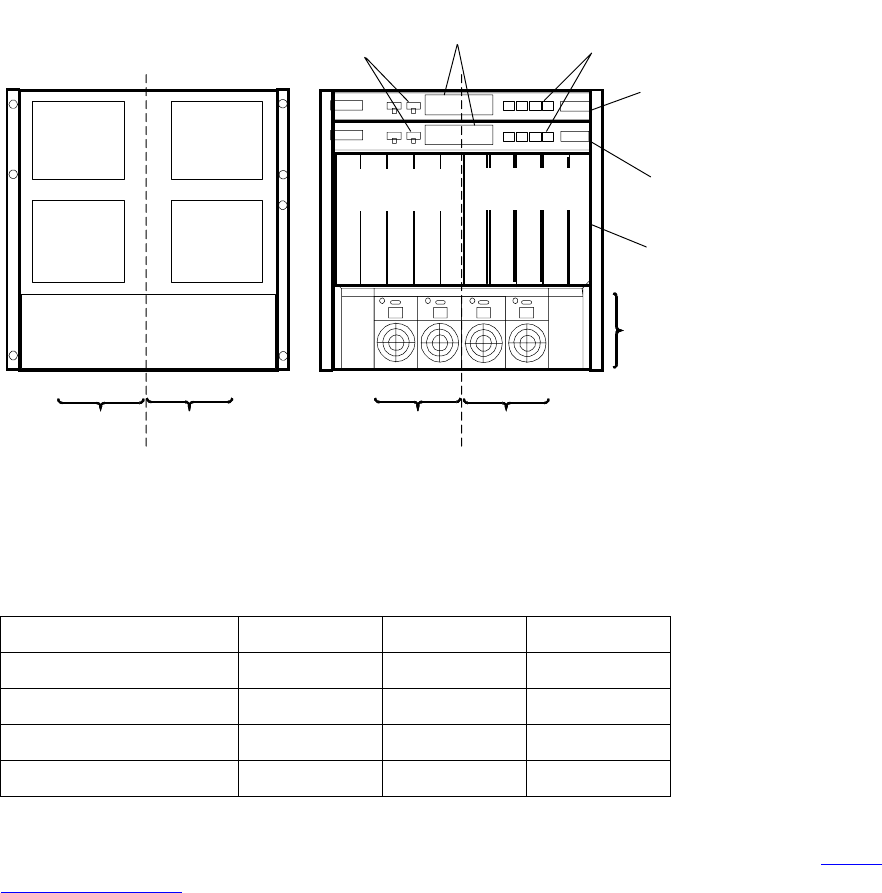

This illustration shows the front and rear of the IOAM enclosure and details:
Because the IOAM enclosure contains two modules, one IOAM enclosure can provide
fault-tolerant paths. However, the paths must be configured through both modules. For
example, you could configure these paths through four FCSAs:
These paths all exist within the same group. But they are divided between two
modules, so the configuration is fault-tolerant. For additional information, see Fibre
Channel Devices on page 6-18.
Path Group Module Slot
Primary 110 02 02
Primary backup 110 03 02
Mirror 110 03 04
Mirror backup 110 02 04
IOAM Enclosure Back
(Group 110 - 115)
IOAM Enclosure Front
(Group 110 - 115)
Power Supplies
(Modules 2 and 3)
Fans
(Mod 3
Slot 17)
Fans
(Mod 2
Slot 17)
Fans
(Mod 3
Slot 16)
Fans
(Mod 2
Slot 16)
Slot 1
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1
Slot 5
Slot 4
Slot 3
Slot 2
IOAM
(Module 2)
IOAM
(Module 3)
Slot
15
Slot
18
Slot
15
Slot
18
Power Supplies
Y ServerNet Switch Board
(Module 3, Slot 14)
VST401.vsd
ServerNet
Adapter
Slots (1-5)
Module 2
Module 3
Module 2
Module 3
ServerNet Links From P-Switch
(MMF LC Connectors)
X ServerNet Switch Board
(Module 2, Slot 14)
Maintenance Connector
(100 BaseT RJ-45)
LDC
