NonStop S-Series I/O Enclosures
NonStop S-Series I/O Enclosures
Topics discussed in this subsection are:
NonStop S-series I/O enclosures can be connected to Integrity NonStop NS-Series
systems to retain not only previously installed hardware but also data stored on disks

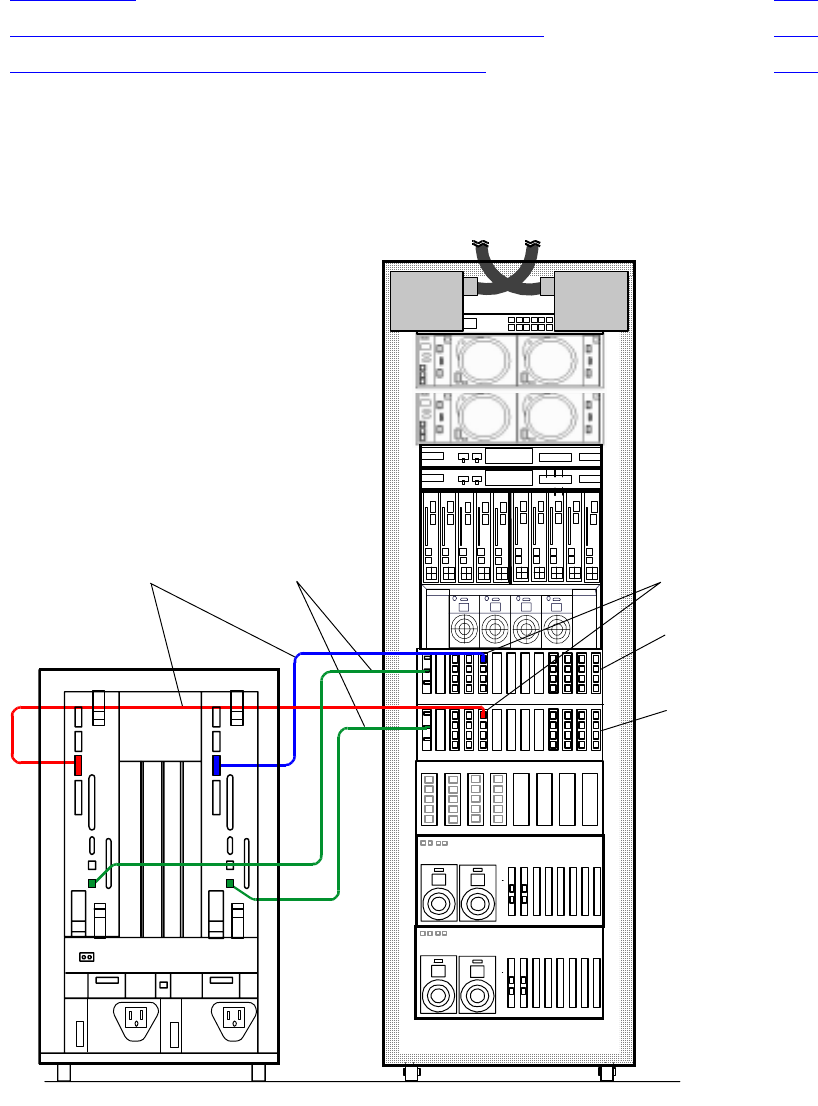

mounted in the NonStop S-series I/O enclosures. This illustration shows connection of
a NonStop S-series I/O enclosure to an Integrity NonStop NS-series system:
Topic Page
IOMF 2 CRU
5-32
NonStop S-Series Disk Drives and ServerNet Adapters 5-32
NonStop S-Series I/O Enclosure Group Numbers 5-32
P-Switch
X Fabric
P-Switch
Y Fabric
VST767.vsd
NonStop S-Series
I/O Enclosure
Integrity NonStop
NS-Series System
Fiber-Optic
ServerNet Cables
P-Switch
ServerNet I/O
PICs
Power-On
Cables
