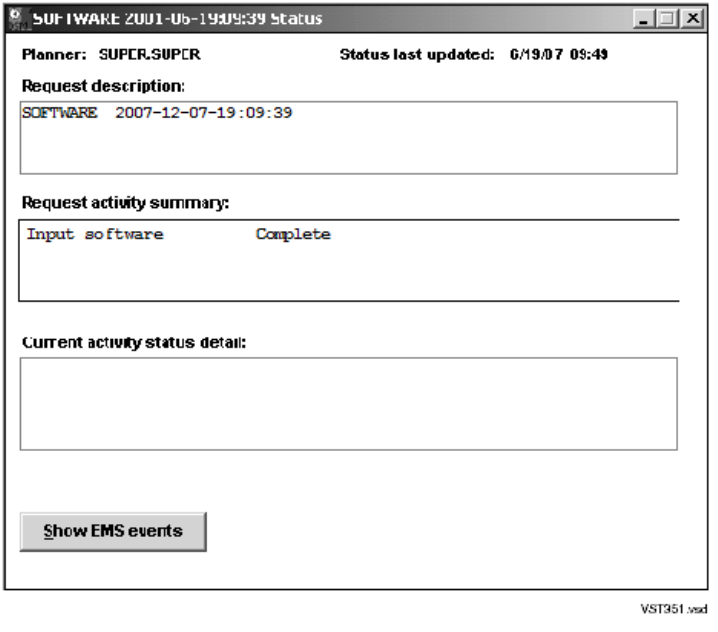

11. Select Window>Refresh to update the Software in Archive dialog box to include the received
software.
Create a New Software Revision for H02 DSM/SCM and SWID SPRs
1. In the Configuration Revisions dialog box, select the target system being upgraded and the
current revision of the system being upgraded. Select New software revision.
DSM/SCM opens the New dialog box listing the products in the last software revision that
was built for the target. Allow several minutes for the dialog box to appear.
2. In the Software in Archive dialog box, select the DSM/SCM software you just received and
click Copy to.
The DSM/SCM files are copied from the Archive to the new software revision.
3. From the New software revision dialog box, verify that the new version of DSM/SCM and
SWID are included in the new software revision.
4. Edit the revision notes for the new revision:
a. Click Edit revision notes.
The Revision Notes box appears, containing the existing revision notes.
b. Enter a description of the changes to the existing text. For example:
Added 06/07/08: DSM/SWID
c. Click OK to add a written history of revisions to existing notes.
Build and Apply the DSM/SCM H02 Software Product Revision
The Build process creates an activation package of products contained in the new software revision.
During the Apply process, the activation package is transferred to the target system. When the
Apply request is finished, a snapshot is automatically created and returned to the host. Because
you are building and applying only a few files, it should take less than an hour before the Build
