Installation Guide - HP Integrity rx2660 Server Pedestal

The pedestal kit bottom attaches to the left side of the server when the server is in the horizontal
position. The pedestal kit top attaches to the right side of the server when the server is in the
horizontal position. The pedestal bottom may be distinguished from the pedestal top by the
pedestal feet slots. The pedestal top for the HP Integrity rx2660 server contains windows through
which server information, such as the MAC address, can be read. The pedestal top also has
ventilation holes for air flow that match ventilation holes in the server chassis.
NOTE: The bottom piece of the pedestal is taller than the server, so try to position the server
so the left side (in the horizontal position) of the server hangs off the edge of the work surface
by a few inches to allow the bottom piece to be attached to the server chassis. If that is not possible,
then raise up the server approximately 3 inches from the work surface to allow the pedestal kit
bottom piece to be attached to the server left side.
Follow these steps to attach the pedestal kit top and bottom.
1. Align the holes in the pedestal component with the posts on the server. See Figure 2-3
(page 10).
NOTE: One of the holes in the pedestal component contains the locking mechanism. This
makes the hole appear partially blocked.
2. Hold the pedestal component flush against the server.
3. Slide the pedestal component forward until it locks into place

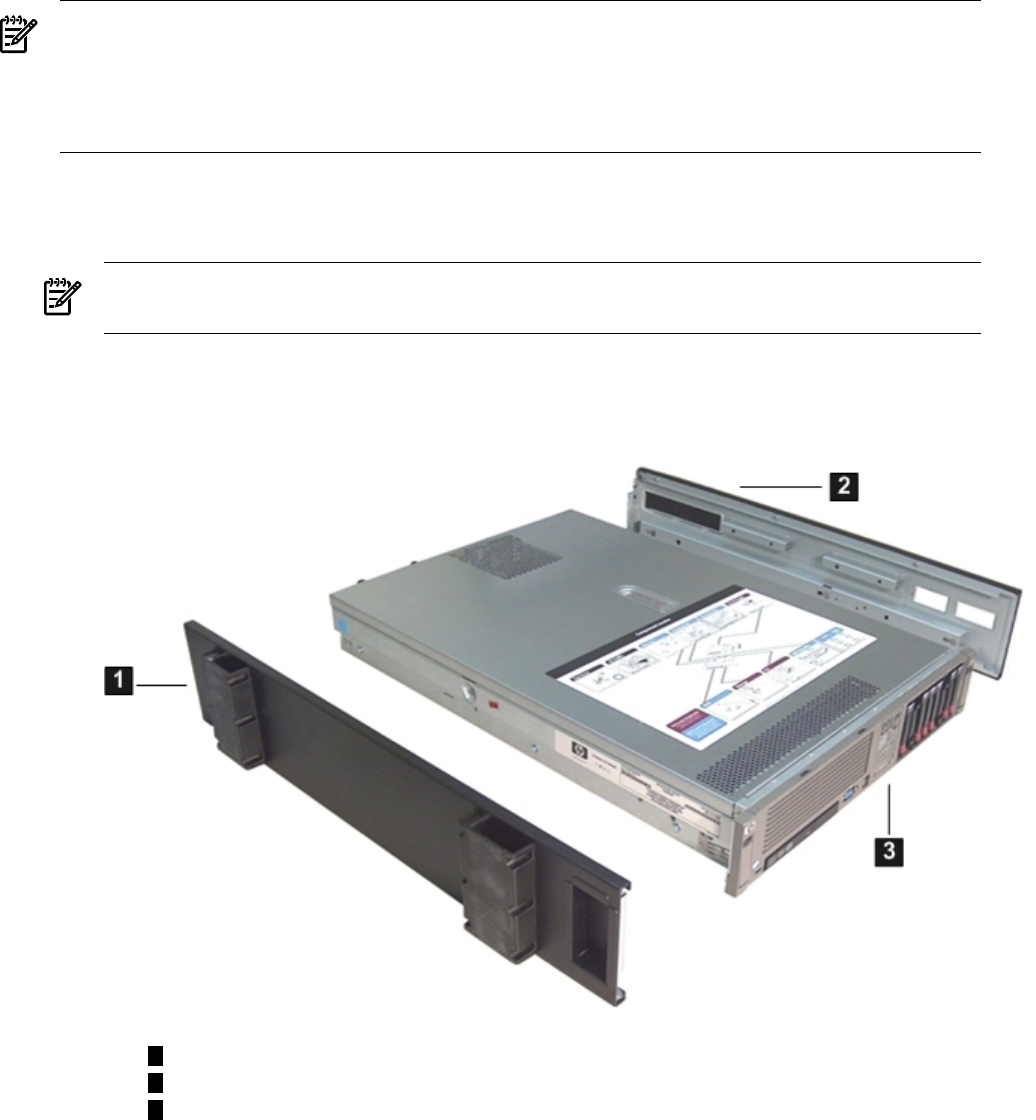

Figure 2-3 Installing the Pedestal Bottom Piece
1
Pedestal kit bottom piece
2
Pedestal kit top piece
3
Server
10 Installing the Server into the Pedestal Kit
