Installation Guide - HP Integrity rx2660 Server Pedestal

Installing the Pedestal Kit Right Side Piece
The pedestal kit right side piece attaches to the bottom of the server. The bottom of the Office
Friendly server does not have ventilation holes in it, and the right side piece of the pedestal kit
does not have ventilation holes in it. Follow these steps to attach the pedestal kit right side piece.
IMPORTANT: Ensure the pedestal kit piece that you are installing onto the right side of the
pedestal (the bottom of the server) does not have ventilation holes in it.
NOTE: The allen wrench may interfere with installing the pedestal kit right side piece. Rotate
the allen wrench away from the pedestal kit right side piece to ensure it doesn't interfere with
the installation.
1. Align the posts on the pedestal kit right side piece with the slots in the pedestal kit top and
bottom.
2. Hold the pedestal side flush against the server and slide it toward the front of the server (1).
See Figure 2-6 (page 13).

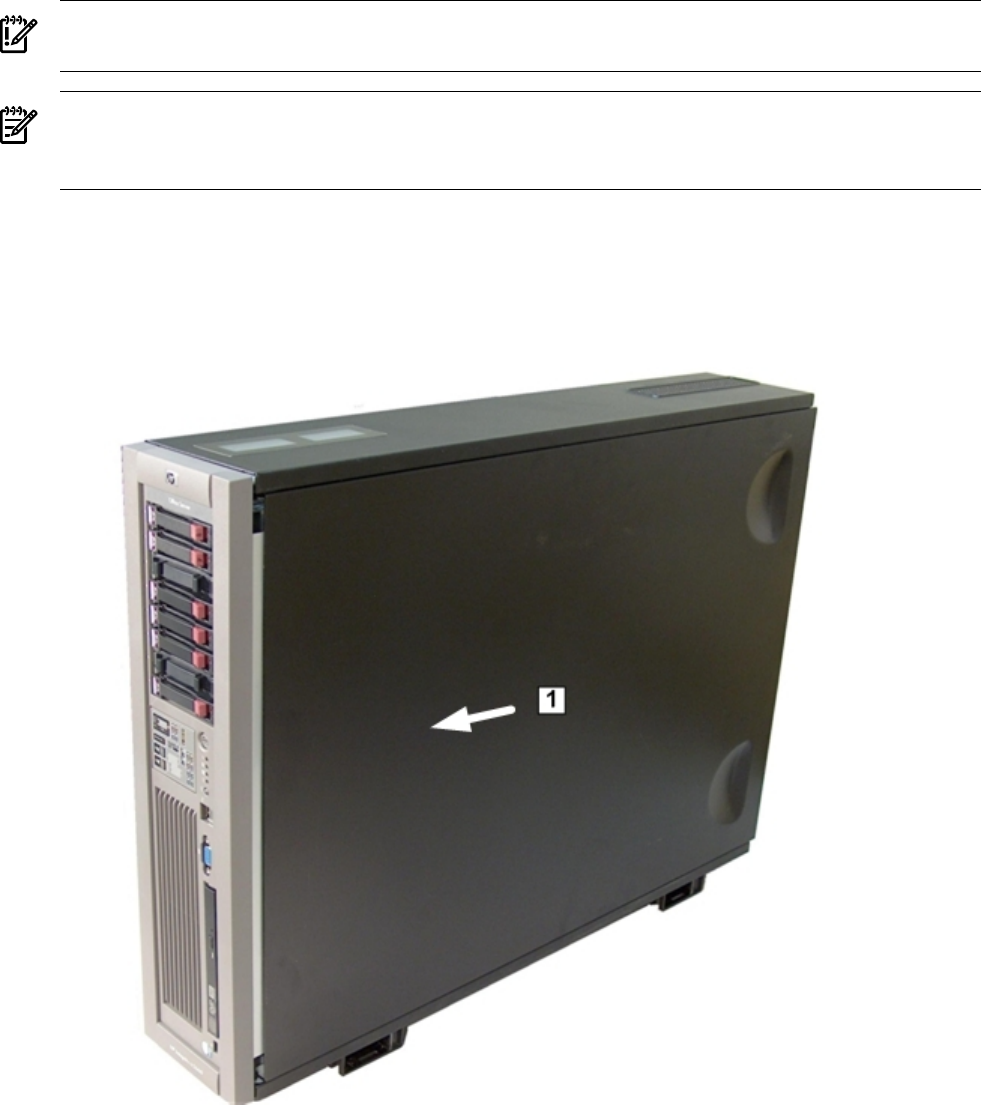

Figure 2-6 Installing the Pedestal Kit Right Side Piece
3. Secure the pedestal side by hand tightening the captive thumb screws on the rear of the
server.
Installing the Pedestal Kit Right Side Piece 13
