Installation Guide - HP Integrity rx2660 Server Pedestal

Installing the Pedestal Kit Top and Bottom
IMPORTANT: In this document the server top, bottom, right and left always refer to the server
as faced from the front with the server in a horizontal orientation. The pedestal kit components
are referred to by their final position with the server in a vertical orientation. For example, the
pedestal kit bottom attaches to the server left side. See Figure 2-2 (page 9) for the server and
pedestal orientations.

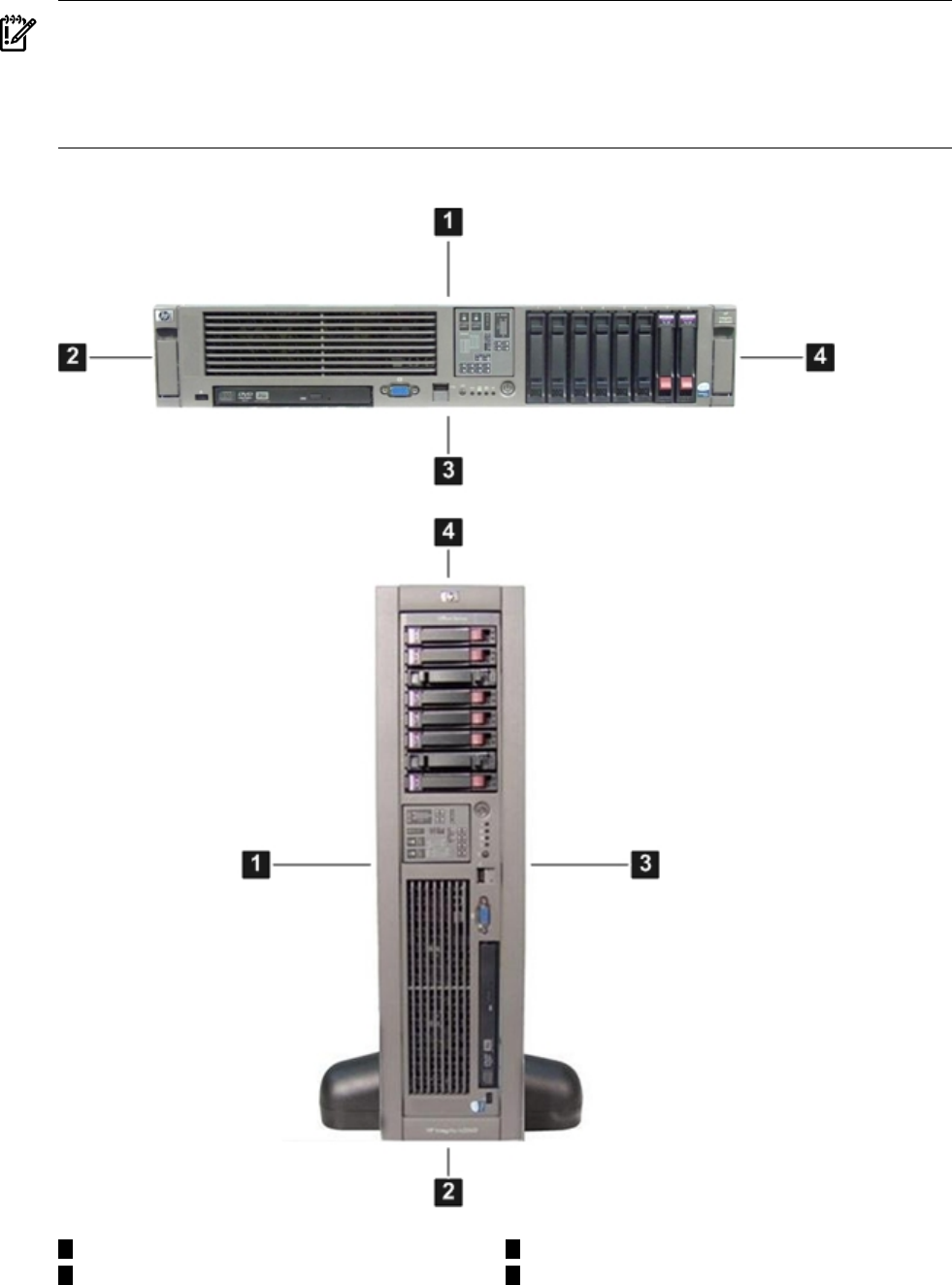

Figure 2-2 Front of Server
3
Server bottom/pedestal right
1
Server top/pedestal left
2 4
Server left/pedestal bottom Server right/pedestal top
Installing the Pedestal Kit Top and Bottom 9
