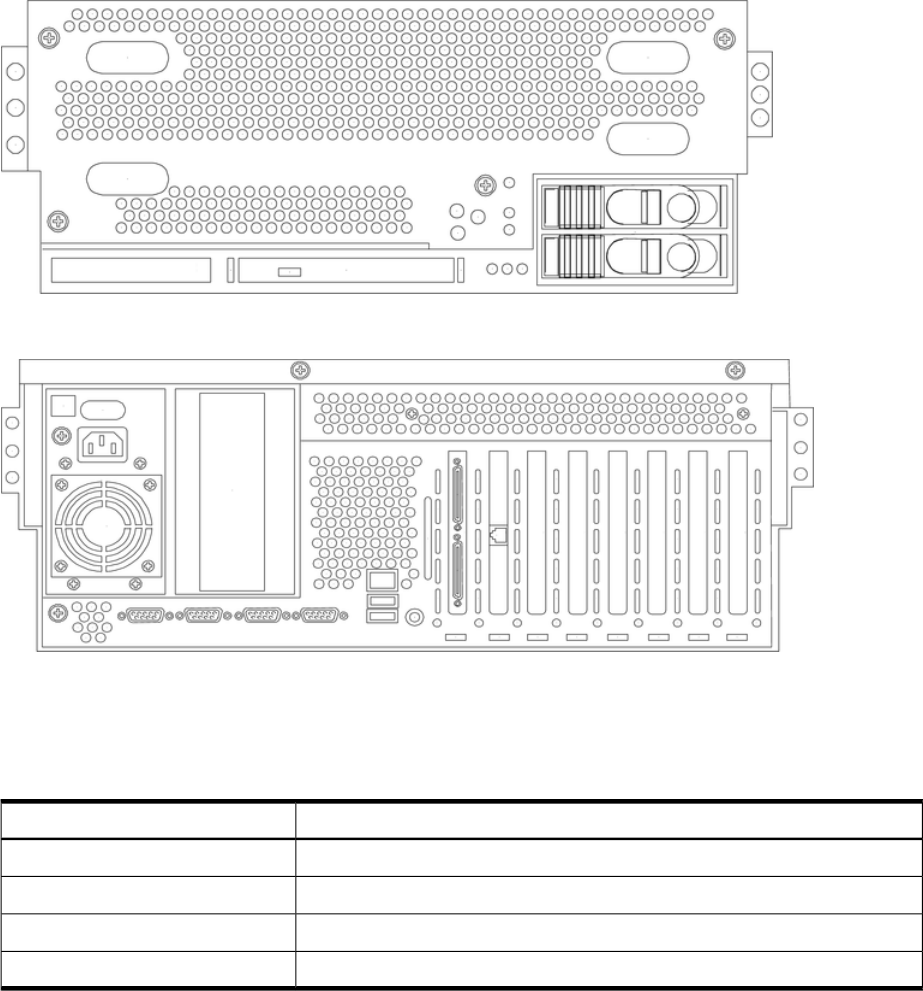

Figure 1-2 HP Integrity rx4640 Server (front view with bezel removed)
Figure 1-3 HP Integrity rx4640 Server (rear view)
Server Dimensions and Weight
Table 1-1 shows the dimensions and values of the HP Integrity rx4640 server.
Table 1-1 Server Dimensions
ValueDimensions
17.46 cm (6.87 in.)Height
44 cm (17.32 in.)Width
(63.8 cm (25.1 in.)Depth
Unloaded - 40 kg (95 lb) Fully loaded - 100 kg (220 lb)Weight
Server Components
The following components comprise the HP Integrity rx4640 server.
Processors
The following processors are available for the server:
• 1.6 GHz / 18 MB cache
• 1.6 GHz / 24 MB cache
These processors are dual-core processors. The processor configuration options are
1-processor/2-core (1p/2c), 2p/4c, 3p/6c, or 4p/8c.
18 Introduction
