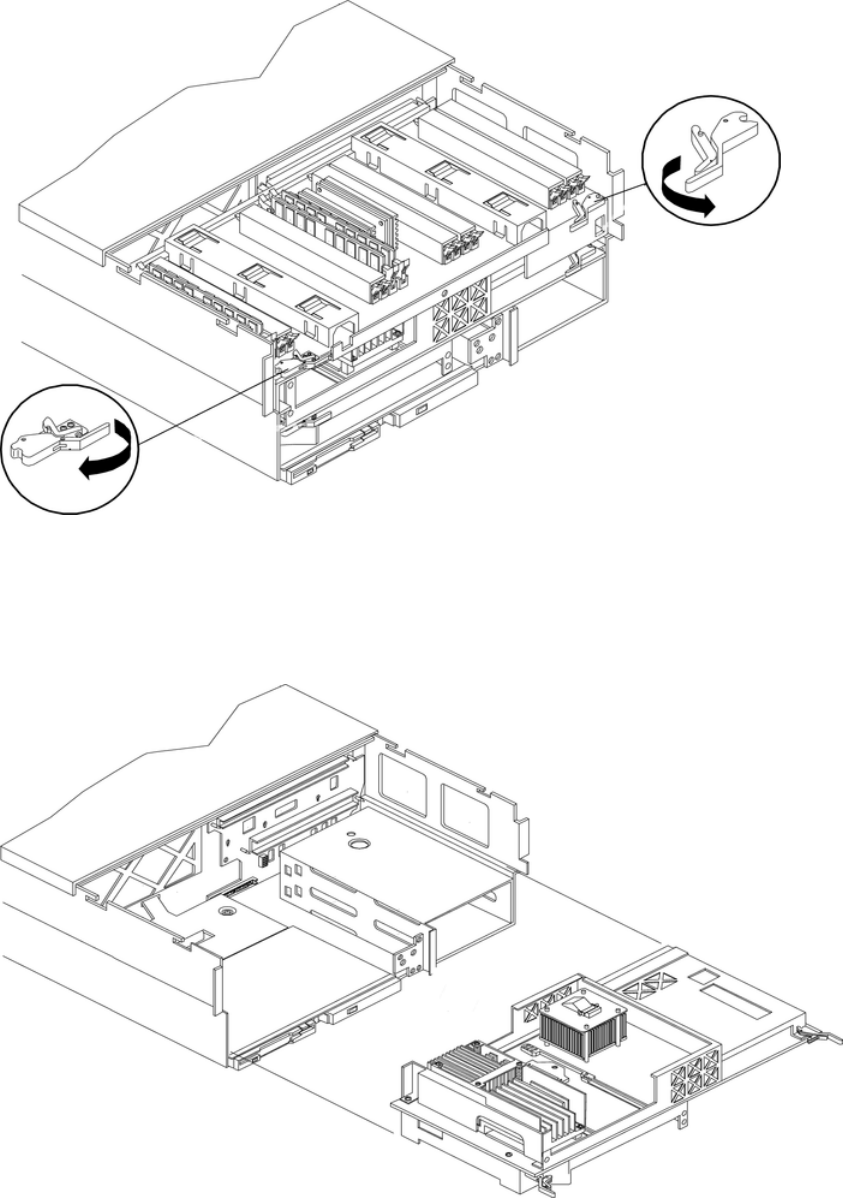

Figure 4-11 Opening the Processor Extender Board Latches
5. Pull out on the extraction levers to unplug the processor extender board from the socket
located on the midplane riser board. Figure 4-12 shows how to remove the extender board
from the server.
Figure 4-12 Removing and Replacing the Processor Extender Board
Replacing the Processor Extender Board
To replace the processor extender board, follow these steps:
1. Ensure the extraction levers are positioned in the outward, unlocked position.
2. Align the processor extender board with the front and rear card guides.
