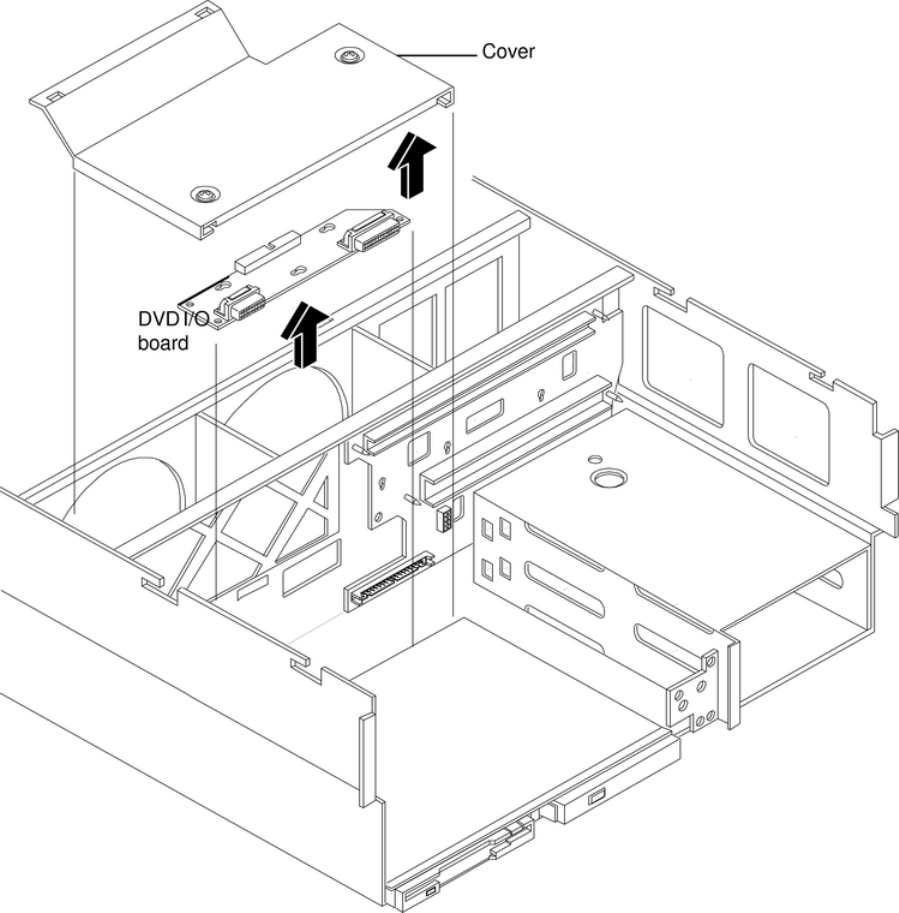

Figure 4-43 Removing and Replacing the DVD I/O Board
8. Unfasten the release clip attaching the DVD I/O board to the chassis, and remove the I/O
board from the chassis.
9. Lift out the DVD I/O board.
10. Remove the midplane riser board connector cable and remove the DVD I/O board from the
chassis.
Replacing the DVD I/O Board
To replace the DVD I/O board, follow these steps:
1. Replace the DVD I/O board into the chassis and plug in the midplane riser board connector
cable.
2. Replace DVD I/O board to the chassis by refastening the release clip.
3. Replace the cover plate using the two torx #15 screws and a torx #15 driver.
4. Replace the processor extender board. See “Replacing the Processor Extender Board”
(page 44).
5. Replace the memory extender board. See “Replacing the Memory Extender Board” (page 38).
